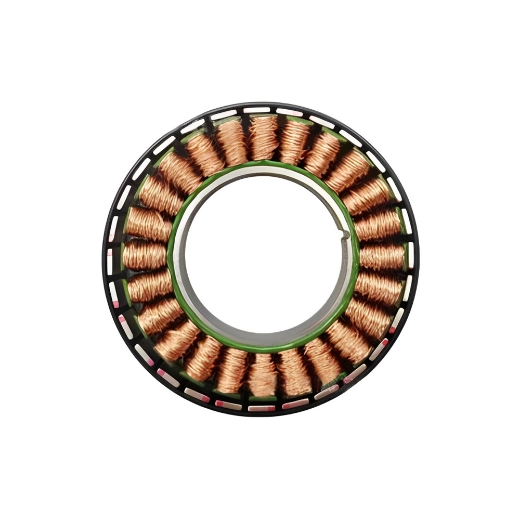

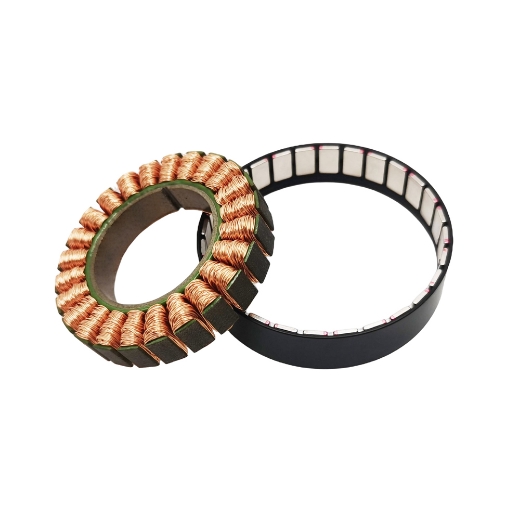

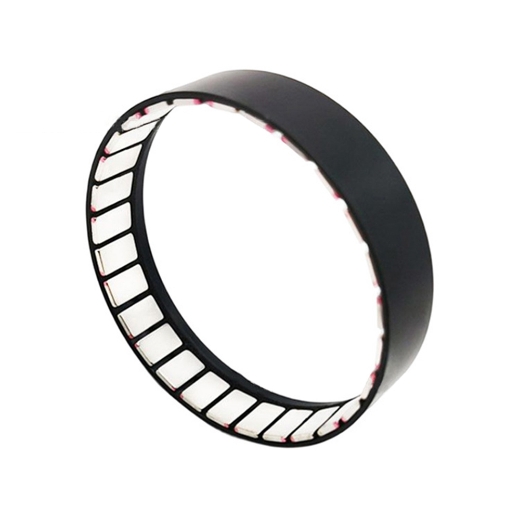

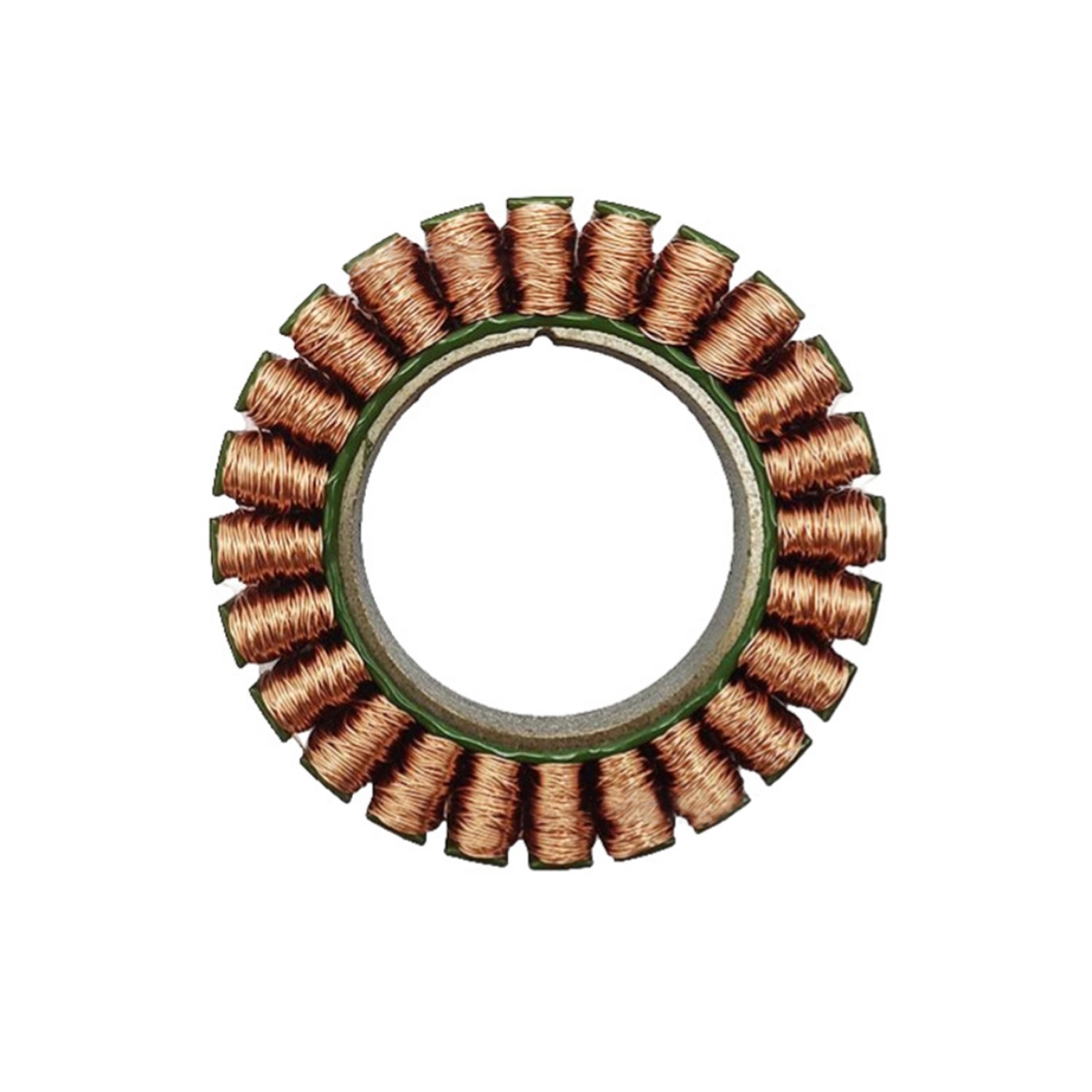

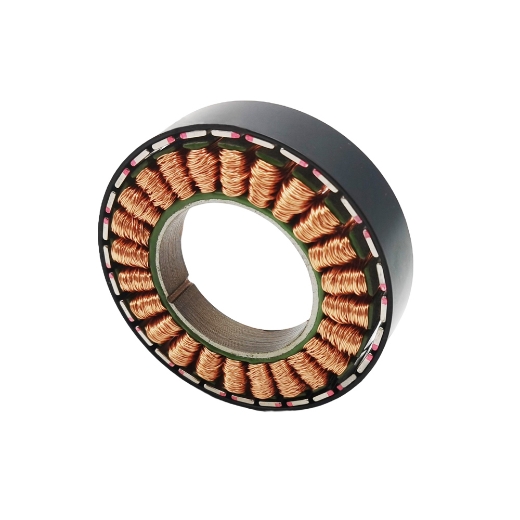

30W 24V Frameless Brushless DC Motor, 180 rpm

This 30W frameless brushless DC motor is designed for applications requiring high efficiency and compact form. With its frameless design, it seamlessly integrates into your system, offering flexibility for customized mounting and enhanced heat dissipation.

Specifications

• Model: BLDC-WK6010
• Rated Power: 28.56W
• Nominal Voltage: 24V
• Nominal Current: 1.19A
• Nominal Torque: 0.73 Nm
• Nominal Speed: 182 rpm
• Max Speed:  275 rpm
• Stall Torque: 1.1 Nm
• Stall Current: 1.8A
• Winding Turs of Motor: 80T
• Phase to Phase Resistance: 11.9Ω
• Phase to Phase Inductance: 13.03Mh
• Speed Constant: 11 rpm/V
• Torque Constant: 0.61 Nm/A
• Rotor Inertia: 748 gcm²
• Number of Pole Pairs: 14
• Motor Weight: 156g
• Working Temperature: -20~80℃
• Max Demagnetize Temperature: 120℃

Features

• The frameless configuration allows seamless integration into applications, saving space and offering greater flexibility in custom designs.
• This frameless brushless DC motor with a rotational speed of 180 rpm, is ideal for applications requiring precise control and smooth operation at lower speeds.
• The frameless BLDC motor delivers a power output of 30W while operating at 24V, ensuring energy-efficient performance with minimal heat generation.
• Brushless design minimizes maintenance, reduces wear and tear, and enhances durability for prolonged operational life.
• Its frameless construction and low-speed operation make it perfect for direct-drive setups, eliminating the need for additional gearing mechanisms.
• Frameless brushless motors offer the flexibility to design and customize your motor housing, making them ideal for DIY and tailored engineering projects.

Dimensions (Unit: mm)

Applications

Frameless Brushless DC Motors are designed for seamless integration into systems where space, weight, and precision are critical. Due to their high efficiency, compact design, and reliability, these motors are commonly used in robotics, drones, medical devices, and industrial automation.

Tips: Can frameless BLDC motors be customized?

Yes, frameless BLDC motors can be highly customized to meet specific application requirements. Customization options include:

1. Size and Shape: The diameter, length, and overall form factor of the motor can be tailored to fit the available space in the system.
2. Winding Configuration: Motor windings can be customized to achieve desired voltage, current, and efficiency levels, influencing torque and speed characteristics.
3. Torque and Speed: The motor’s torque and speed can be adjusted based on the load requirements of the application, optimizing performance for specific tasks.
4. Magnetic Materials: The choice of magnets (e.g., neodymium or ferrite) can affect the motor's efficiency, power density, and cost.
5. Cooling Options: Custom cooling methods, such as heat sinks or external fans, can be added to ensure optimal performance under heavy loads or high temperatures.
6. Feedback Systems: Encoders, resolvers, or Hall sensors can be integrated for position feedback and precise control.
7. Voltage and Control: Custom voltage ratings and control types (e.g., sensorless, FOC) can be selected based on the application’s power and control needs.
