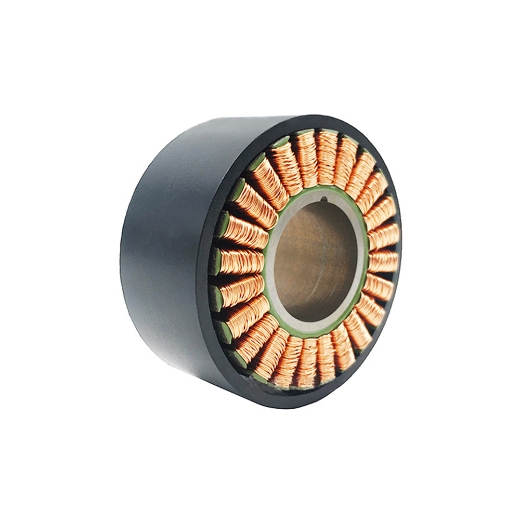

30W 24V Frameless Brushless DC Motor, 200 rpm

This 30-watt frameless DC motor, built with advanced brushless technology, reduces wear and tear, ensuring extended lifespan and minimal maintenance. Its 200 rpm speed is optimized for delivering consistent, high-performance results across various industries.

Specifications

• Model: BLDC-WK5225
• Rated Power: 30.72W
• Nominal Voltage: 24V
• Nominal Current: 1.28A
• Nominal Torque: 1.26 Nm
• Nominal Speed: 221 rpm
• Max Speed: 336 rpm
• Stall Torque: 1.9 Nm
• Stall Current: 1.94A
• Winding Turs of Motor: 50T
• Phase to Phase Resistance: 11.8Ω
• Phase to Phase Inductance: 11.31Mh
• Speed Constant: 14 rpm/V
• Torque Constant: 0.98 Nm/A
• Rotor Inertia: 933 gcm²
• Number of Pole Pairs: 11
• Motor Weight: 281g
• Working Temperature: -20~80℃
• Max Demagnetize Temperature: 120℃

Features

• The frameless configuration allows seamless integration into applications, saving space and offering greater flexibility in custom designs.
• This frameless brushless DC motor with a rotational speed of 221 rpm, is ideal for applications requiring precise control and smooth operation at lower speeds.
• The frameless BLDC motor delivers a power output of 30W while operating at 24V, ensuring energy-efficient performance with minimal heat generation.
• Brushless design minimizes maintenance, reduces wear and tear, and enhances durability for prolonged operational life.
• Its frameless construction and low-speed operation make it perfect for direct-drive setups, eliminating the need for additional gearing mechanisms.
• Frameless brushless motors offer the flexibility to design and customize your motor housing, making them ideal for DIY and tailored engineering projects.

Dimensions (Unit: mm)

Applications

Frameless Brushless DC Motors are designed for seamless integration into systems where space, weight, and precision are critical. Due to their high efficiency, compact design, and reliability, these motors are commonly used in robotics, drones, medical devices, and industrial automation.

Tips: Can frameless BLDC motors be used in medical devices?

Yes, frameless BLDC motors can be used in medical devices, and they offer several advantages in this field. Their precision, quiet operation, and compact design make them ideal for applications where accuracy and reliability are critical. For example, they are used in surgical robots, where smooth and precise movements are essential for performing delicate procedures. Additionally, frameless BLDC motors are found in MRI machines, where low noise and vibration are important for patient comfort and image clarity. They are also utilized in prosthetics for providing controlled and responsive movements, as well as in other medical devices like ventilators or injectors where small, efficient motors are needed for performance. The ability to customize the motor's design to meet specific size, power, and operational requirements further enhances its suitability for medical applications.
