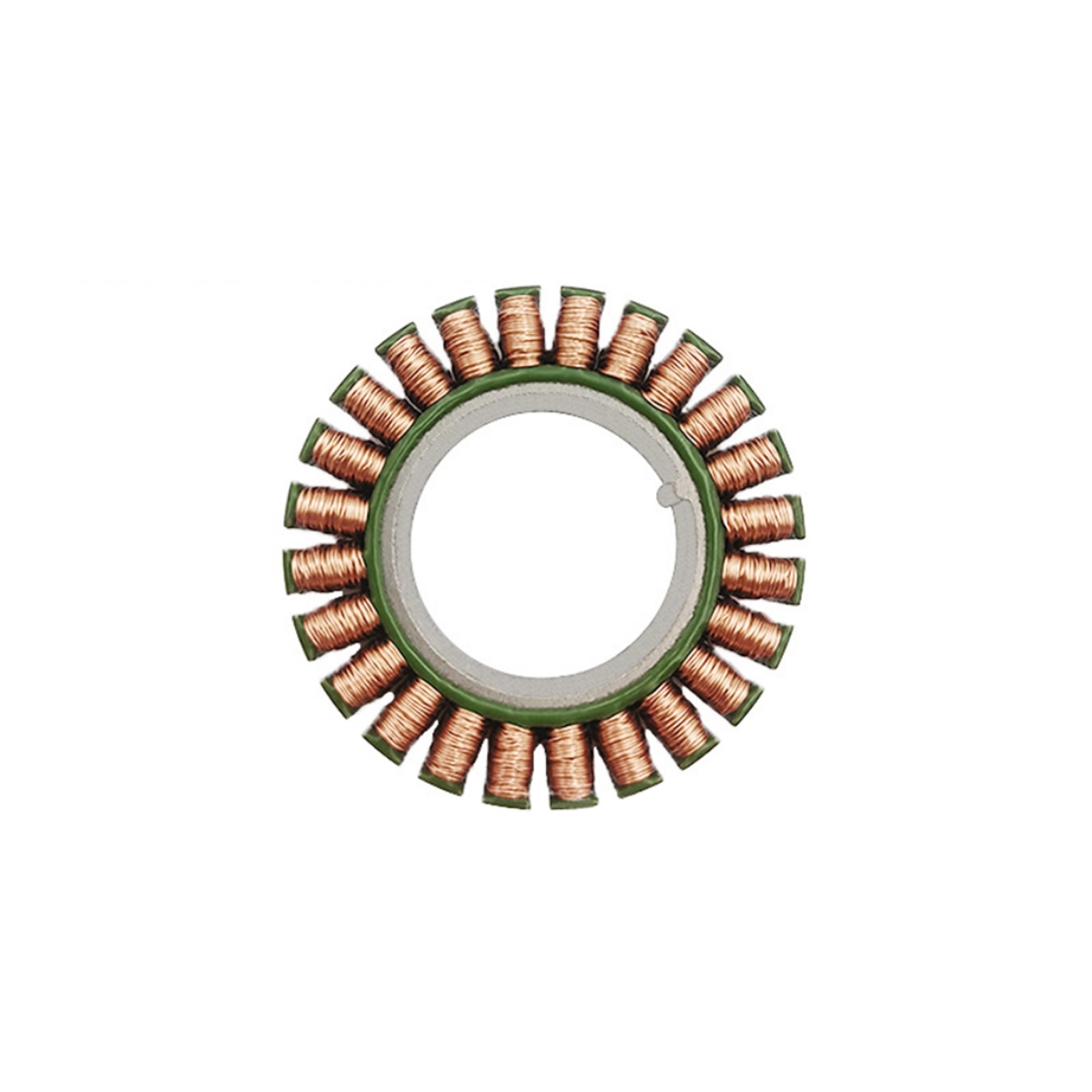

9W 16V Frameless Brushless DC Motor, 200 rpm

Buy an affordable price frameless brushless DC motor online, it comes with a rated speed of 200 rpm and provides smooth and consistent torque for applications requiring fine control.

Specifications

• Model: BLDC-WK4315
• Rated Power: 9.44W
• Nominal Voltage: 16V
• Nominal Current: 0.59A
• Nominal Torque: 0.28 Nm
• Nominal Speed: 238 rpm
• Max Speed: 360 rpm
• Stall Torque: 0.42 Nm
• Stall Current: 0.9A
• Winding Turs of Motor: 60T
• Phase to Phase Resistance: 15.2Ω
• Phase to Phase Inductance: 6.56Mh
• Speed Constant: 23 rpm/V
• Torque Constant: 0.47 Nm/A
• Rotor Inertia: 268 gcm²
• Number of Pole Pairs: 14
• Motor Weight: 110g
• Working Temperature: -20~80℃
• Max Demagnetize Temperature: 120℃

Features

• The frameless configuration allows seamless integration into applications, saving space and offering greater flexibility in custom designs.
• This frameless brushless DC motor with a rotational speed of 238 rpm, is ideal for applications requiring precise control and smooth operation at lower speeds.
• The frameless BLDC motor delivers a power output of 9W while operating at 16V, ensuring energy-efficient performance with minimal heat generation.
• Brushless design minimizes maintenance, reduces wear and tear, and enhances durability for prolonged operational life.
• Its frameless construction and low-speed operation make it perfect for direct-drive setups, eliminating the need for additional gearing mechanisms.
• Frameless brushless motors offer the flexibility to design and customize your motor housing, making them ideal for DIY and tailored engineering projects.

Dimensions (Unit: mm)

Applications

Frameless Brushless DC Motors are designed for seamless integration into systems where space, weight, and precision are critical. Due to their high efficiency, compact design, and reliability, these motors are commonly used in robotics, drones, medical devices, and industrial automation.

Tips: What are common applications for frameless BLDC motors?

Frameless BLDC motors are commonly used in applications where space, weight, and precision are critical. They are widely employed in drones and UAVs for their high efficiency and low vibration, in robotics for industrial robots and robotic arms, and in medical devices such as MRI machines, surgical robots, and prosthetics due to their quiet operation and precision. These motors also find applications in aerospace for flight control systems, in electric vehicles for auxiliary systems, and industrial automation like CNC machines and conveyors. Additionally, they are used in consumer electronics such as power tools and fans, where compactness and energy efficiency are essential. Overall, frameless BLDC motors are ideal for applications requiring high performance and customization in tight spaces.
