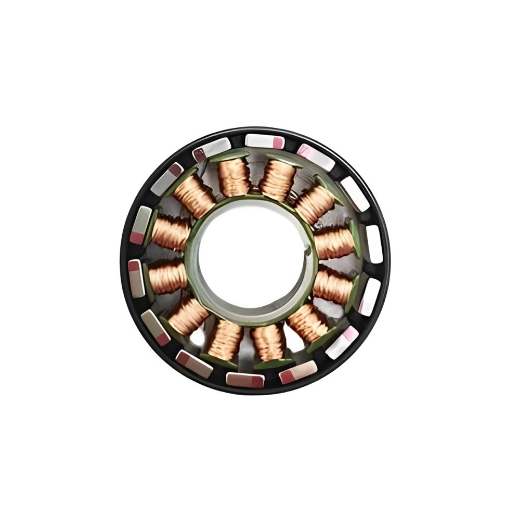

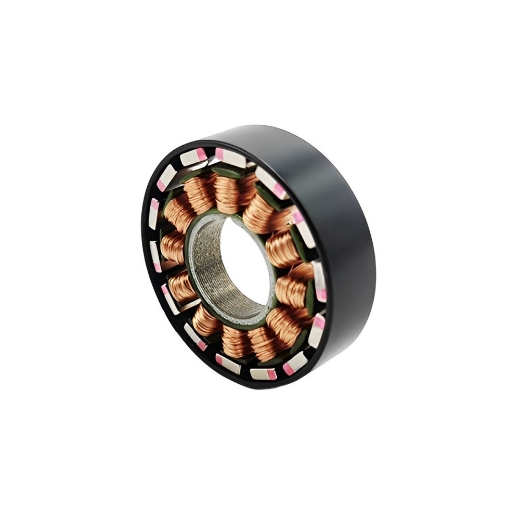

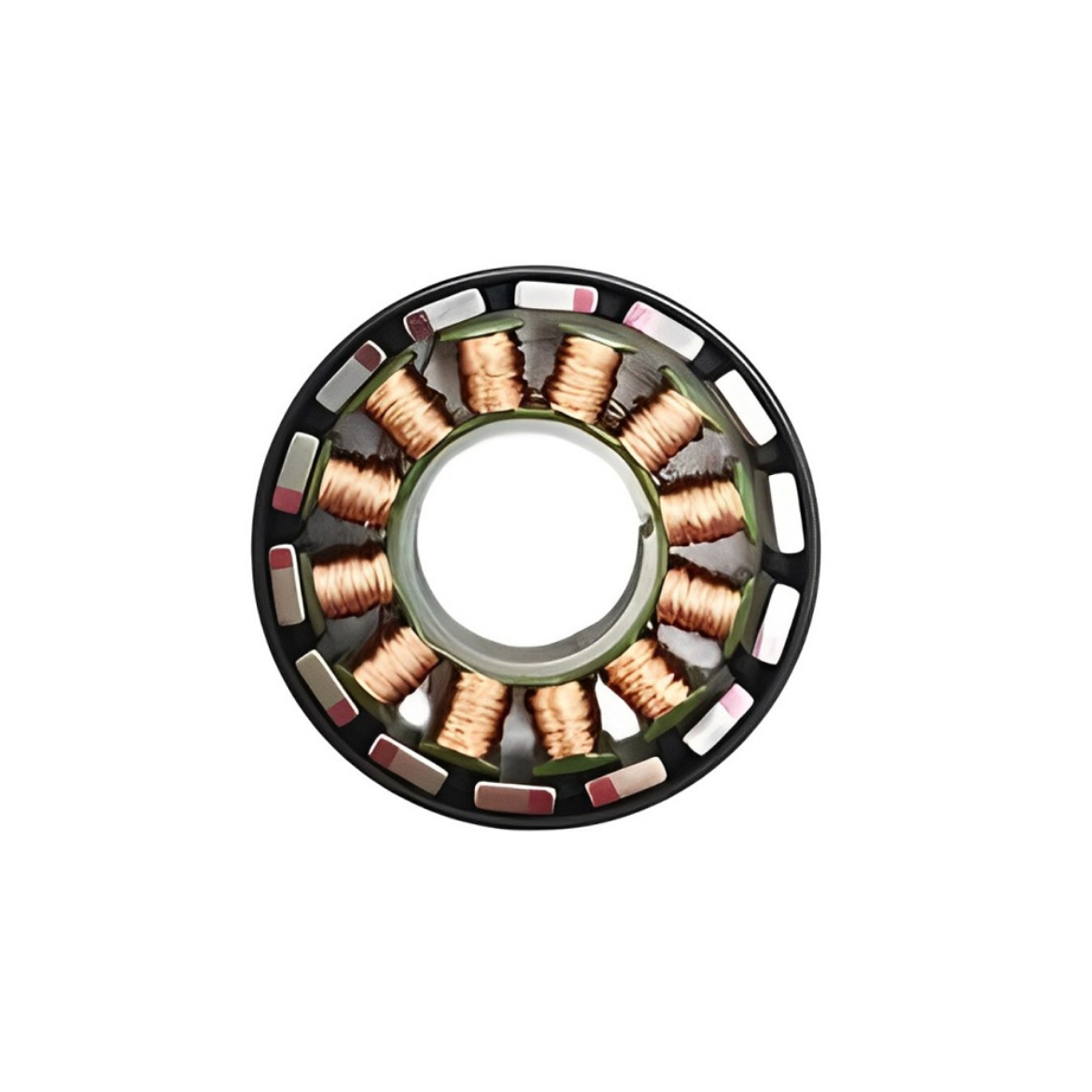

9W 12V Frameless Brushless DC Motor, 950 rpm

The frameless brushless DC motor features a brushless design for durability, generating low heat and minimal wear. Its energy-efficient power consumption (drawing only 0.81A at nominal voltage) ensures reliable performance and an extended lifespan, even in demanding environments.

Specifications

• Model: BLDC-WK2806
• Rated Power: 9.72W
• Nominal Voltage: 12V
• Nominal Current: 0.81A
• Nominal Torque: 0.06 Nm
• Nominal Speed: 950 rpm
• Max Speed: 1452 rpm
• Stall Torque: 0.09 Nm
• Stall Current: 1.22A
• Winding Turs of Motor: 60T
• Phase to Phase Resistance: 5Ω
• Phase to Phase Inductance: 1.51Mh
• Speed Constant: 121 rpm/V
• Torque Constant: 0.07 Nm/A
• Rotor Inertia: 51 gcm²
• Number of Pole Pairs: 7
• Motor Weight: 22g
• Working Temperature: -20~80℃
• Max Demagnetize Temperature: 120℃

Features

• The frameless configuration allows seamless integration into applications, saving space and offering greater flexibility in custom designs.
• This frameless brushless DC motor with a rotational speed of 950 rpm,  is ideal for applications requiring precise control and smooth operation at lower speeds.
• The frameless BLDC motor delivers a power output of 9W while operating at 12V, ensuring energy-efficient performance with minimal heat generation.
• Brushless design minimizes maintenance, reduces wear and tear, and enhances durability for prolonged operational life.
• Its frameless construction and low-speed operation make it perfect for direct-drive setups, eliminating the need for additional gearing mechanisms.
• Frameless brushless motors offer the flexibility to design and customize your motor housing, making them ideal for DIY and tailored engineering projects.

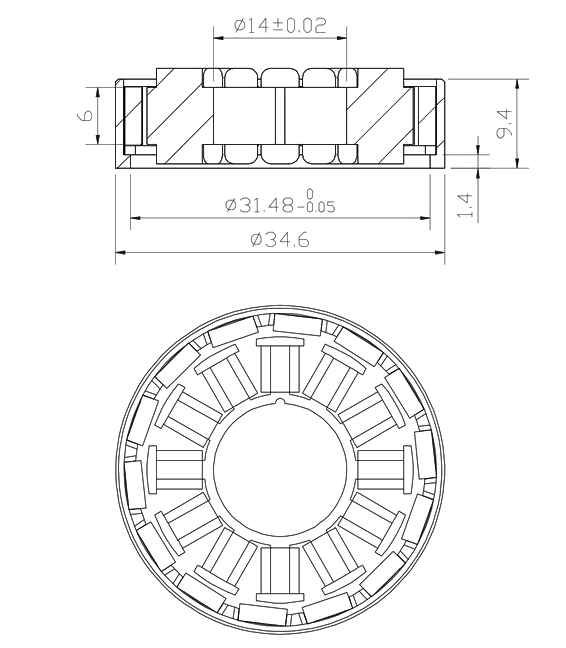

Dimensions (Unit: mm)

Applications

Frameless Brushless DC Motors are designed for seamless integration into systems where space, weight, and precision are critical. Due to their high efficiency, compact design, and reliability, these motors are commonly used in robotics, drones, medical devices, and industrial automation.

Tips: What is a frameless BLDC motor?

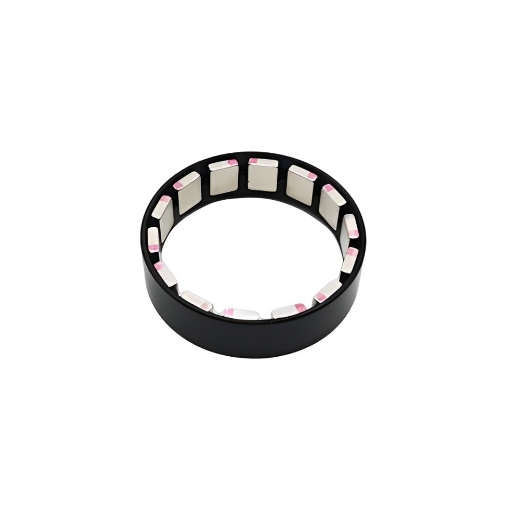

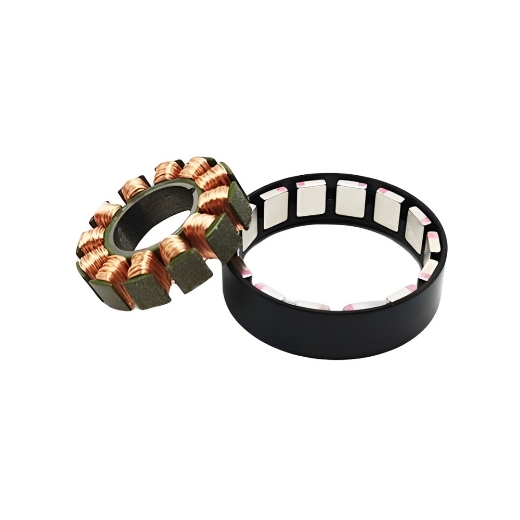

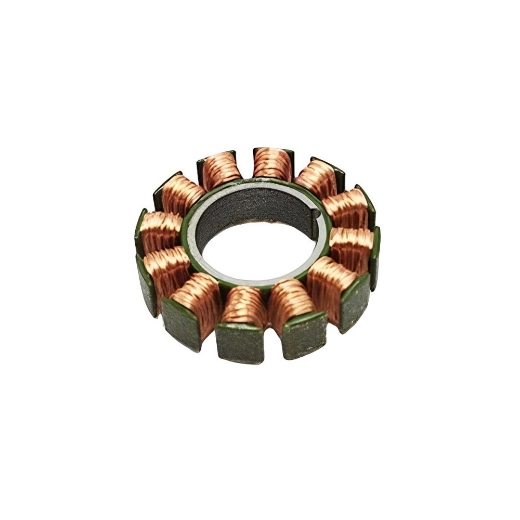

A frameless BLDC motor is a type of Brushless DC motor that consists of only the stator (the stationary part with windings) and the rotor (the rotating part with magnets). Unlike traditional motors, it does not include housing, shaft, or bearings, allowing for direct integration into a mechanical assembly or system.

This design provides flexibility for applications that require a compact, lightweight, and highly efficient motor solution, making it ideal for industries like robotics, drones, medical devices, and aerospace. By incorporating the motor directly into the final product, frameless BLDC motors can deliver optimized performance and better space utilization.
