320KV Brushless Heavy Lift Drone Motor 320KV Brushless Heavy Lift Drone Motor 320KV Brushless Heavy Lift Drone Motor 320KV Brushless Heavy Lift Drone Motor

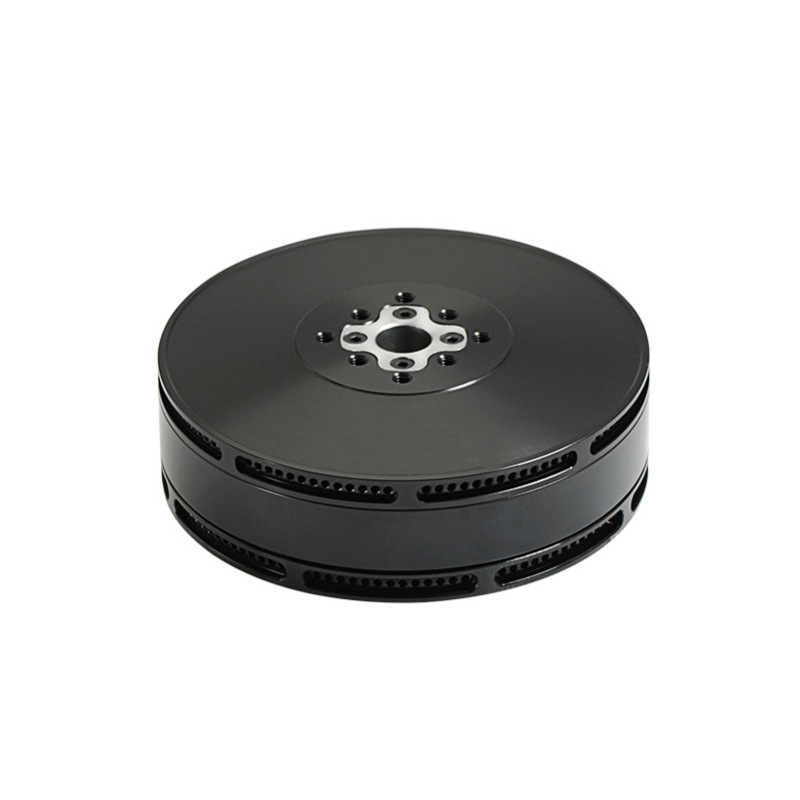

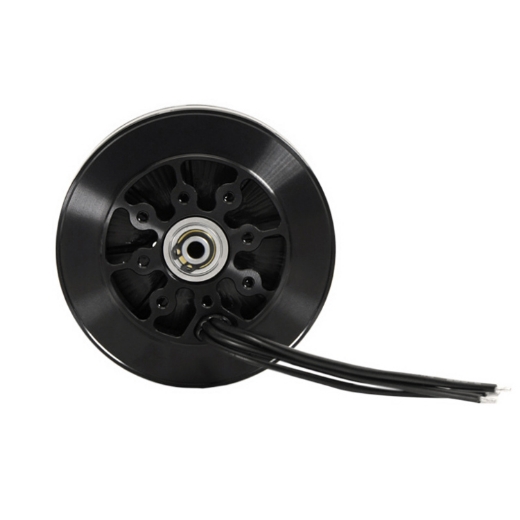

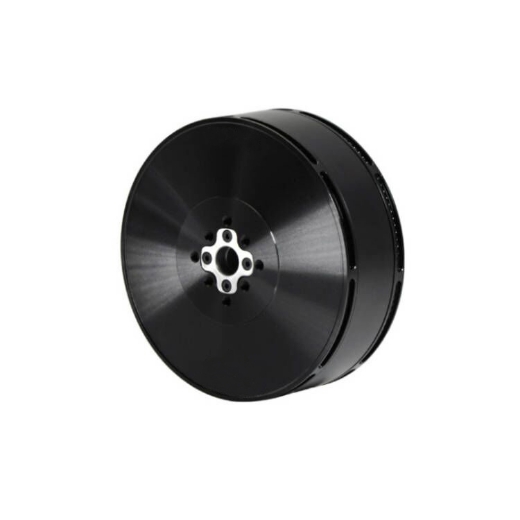

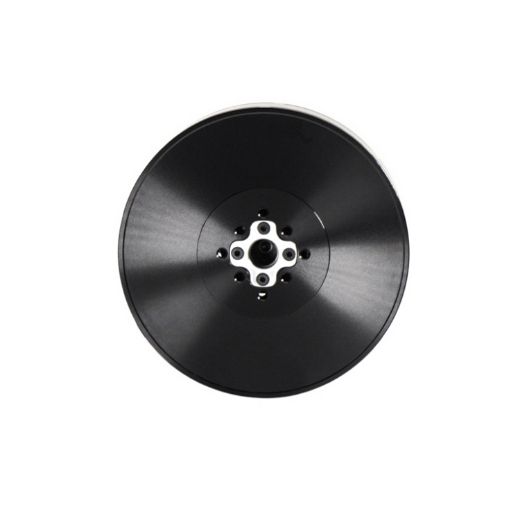

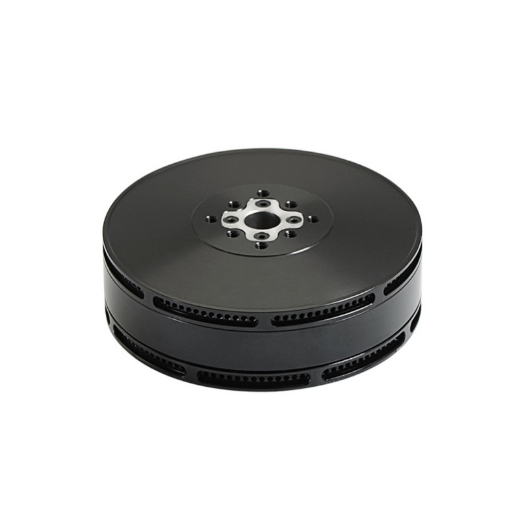

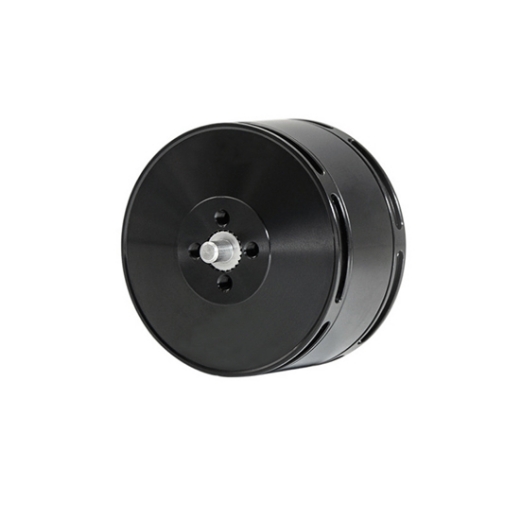

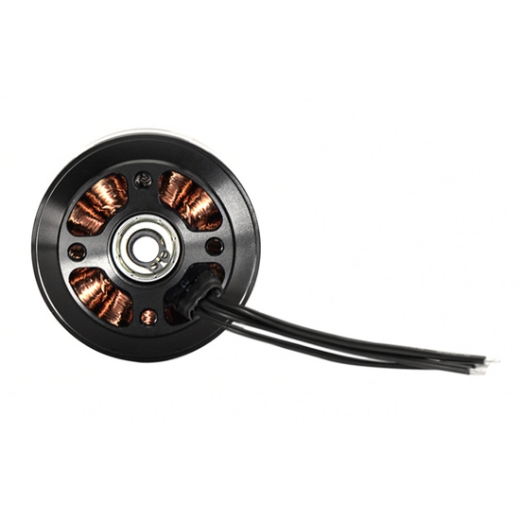

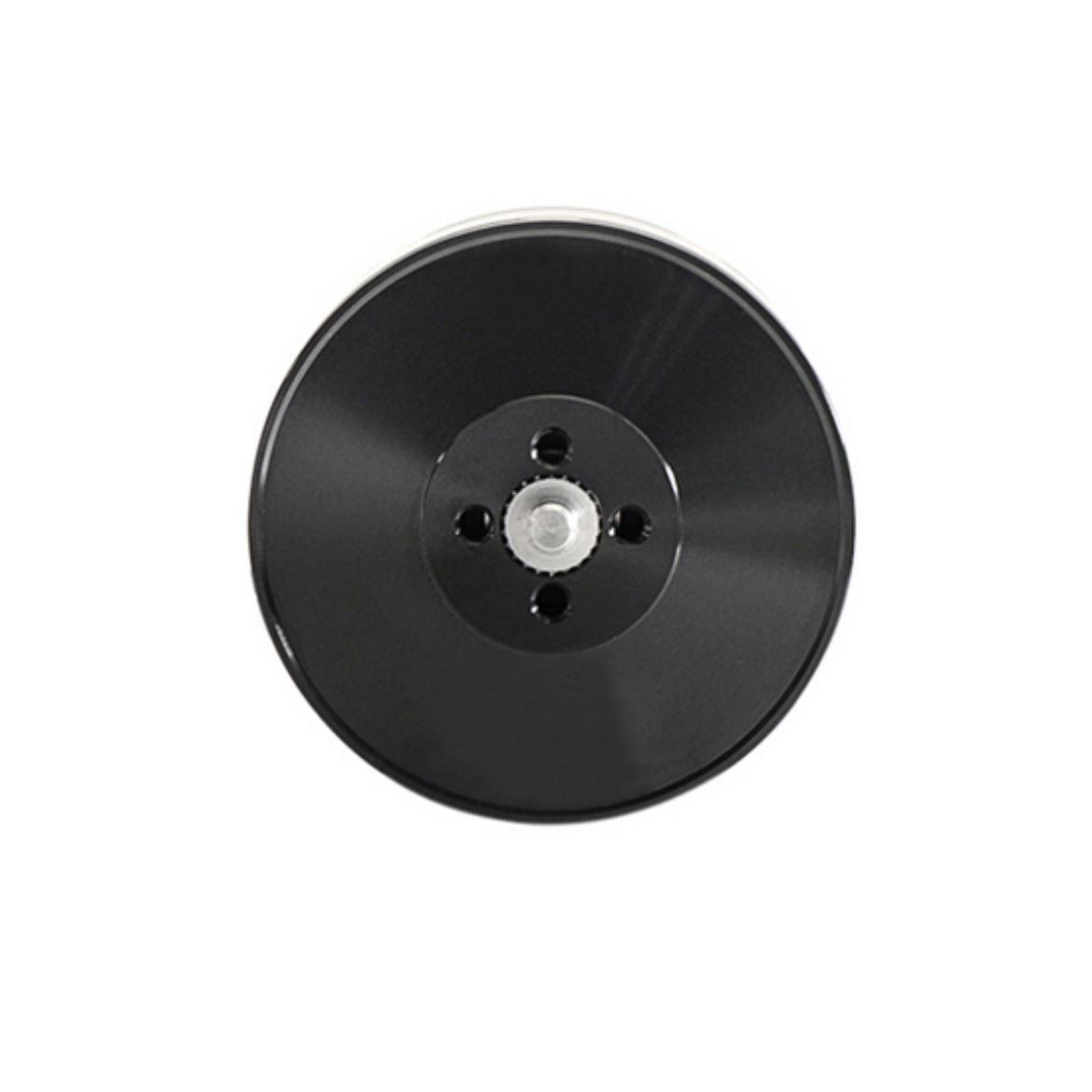

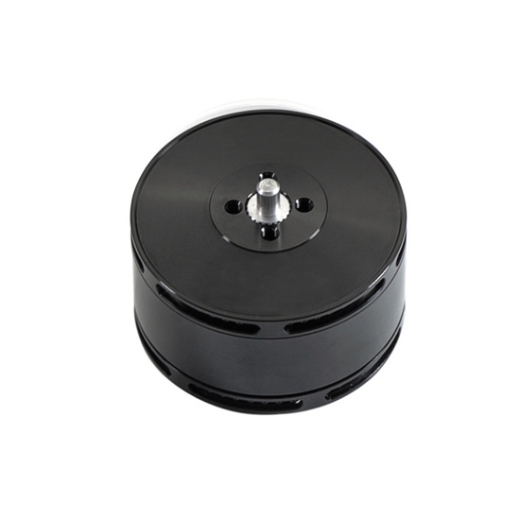

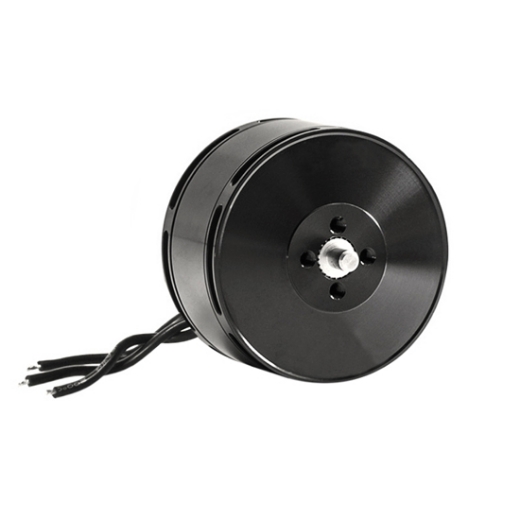

320KV Brushless Heavy Lift Drone Motor

$211.04
| 2 review(s) | Write your review
The provided brushless motor is designed for drone. Heavy lift drone motor comes with 4S/6S rated voltage to spin 15/16/17 inch propeller and generate the thrust that your drone can fly. The 320KV/420KV/580KV drone motor rpm is optional, suitable for various working environments.
Free shipping
Delivery date: 7-14 days
SKU: BLDC-HLDM-320
*
increase decrease
Overview

320KV/420KV/580KV brushless motor is a quadcopter motor that connects with 15/16/17 inch propellers to make a drone fly. 4S/6S BLDC motor speed control is perfect for heavy lift drone position and speed control. Heavy lift drone motor comes with lightweight, high efficiency, wide speed range and strong torque capability.

Specifications

Model BLDC-EOLO-4112
Motor KV 320 420 580
Number of Stator Slots 12 12 12
Number of Rotor Poles 14 14 14
Motor Size φ47.5*37.3mm φ47.5*37.3mm φ47.5*37.3mm
Shaft Diameter 4.0mm 4.0mm 4.0mm
Motor Silicone Wire 20AWG 600mm 20AWG 600mm 20AWG 600mm
Motor Weight (Including Wires) 197g 199g 200g
Rated Voltage (Lipo) 6S 6S 4S
No-Load Current 0.5A/10V 0.7A/10V 1.1A/10V
Maximum Continuous Power 825W 1000W 1020W
Maximum Continuous Current 33A/30s 40A/30s 62A/30s
Recommended ESC 40A 40A 50A
Recommended Propeller CN17*6.2 CN15*5.5/C15*5.5 CN17*6.2/CN15*5.5


Features

  • 320KV/420KV/580KV brushless motor is high efficiency and stable, suitable for heavy lift drones.
  • It adopts an IP54 motor structure design to prevent dust and rain.
  • Lightweight brushless drone motor has a manual winding, the ultimate full slots rate, and a new optimized magnetic circuit to make the power stronger.

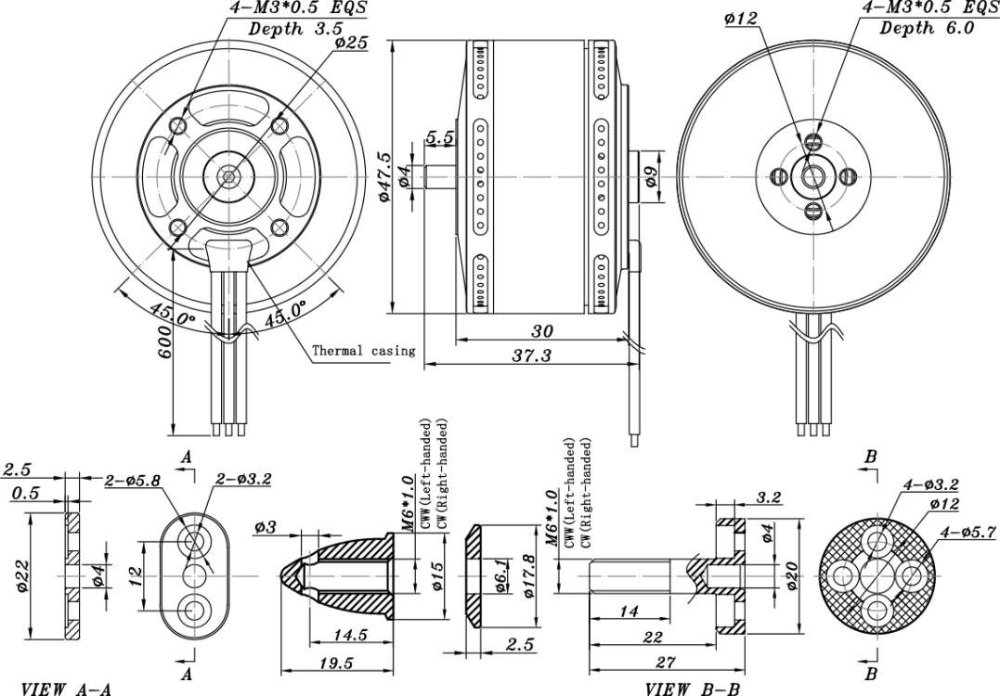

Dimensions (Unit: mm)

320KV Brushless Motor for Heavy Lifting Drone

Tips: What is a Drone Motor?

320KV drone motor is a brushless motor. The drone motors are what your propellers are connected to which causes them to spin around and generate thrust to enable your drone to fly. In the case of fixed-wing aircraft, the motors generate a forward thrust to push your plane forwards through the air.

Write your own review
*
*
Reviews
Runs smoothly
I purchased a 320kV brushless motor for my drone. Lightweight, powerful and running quietly, which is important for aerial photography and videography. It meets my need!
Jennifer | 3/7/2023 7:14 PM
Was this review helpful? Yes No (0/0)
Excellent quality and service
I bought this 320KV for my son's drone, it is a excellent choice for drones. Great performance, fast delivery, and easy install.
Cora | 9/26/2022 11:55 PM
Was this review helpful? Yes No (0/0)
