100KV Brushless Heavy Lift Drone Motor 100KV Brushless Heavy Lift Drone Motor 100KV Brushless Heavy Lift Drone Motor 100KV Brushless Heavy Lift Drone Motor

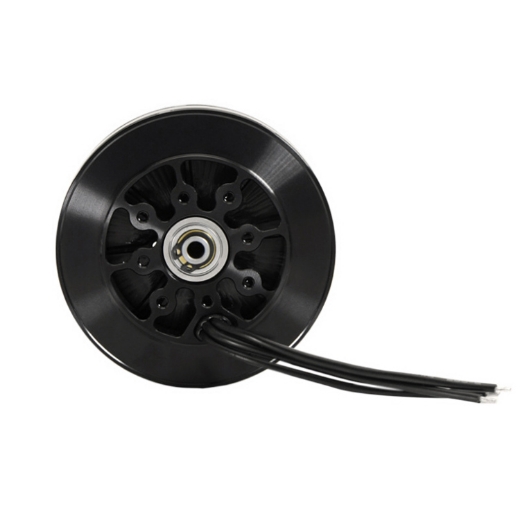

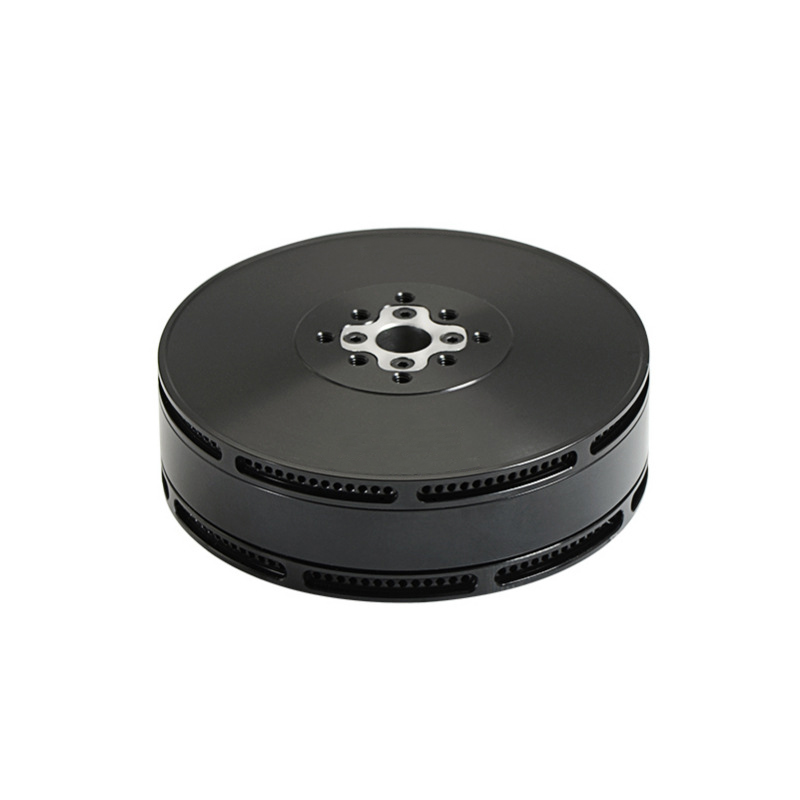

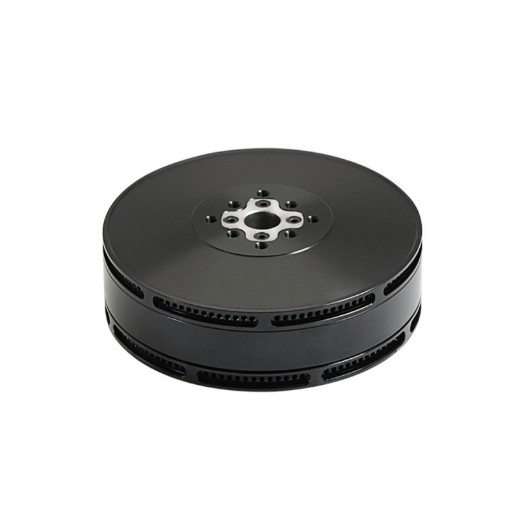

100KV Brushless Heavy Lift Drone Motor

$391.04
| 1 review(s) | Write your review
Powerful 12mm heavy lift drone motor for sale online. 100KV brushless drone motor should be attached to the 30-inch propeller, spin it and generate the thrust that your drone can fly. The 12S BLDC drone motor supports multi-rotor aircraft, suitable for various working environments.
Free shipping
Delivery date: 7-14 days
SKU: BLDC-HLDM-100
increase decrease
Overview

Buy a high-efficiency and stable 100KV brushless motor for drone. BLDC motor speed control is crucial for heavy lift drone position and speed control. Low price 12S drone motor with a 30-inch propeller can make your drone fly in the air.

Specifications

Model: BLDC-EOLO-8114
Motor KV: 100
Number of Stator Slots: 36
Number Of Rotor Poles: 42
Motor Internal Resistance: 70mΩ
Motor Size: φ88.6*35.0mm

Shaft Diameter: 12mm
Stator Outer Diameter: 81mm
Stator Thickness: 14mm
Motor Silicone Wire: 20AWG 100mm
Weight (Including Wire): 430g
Rated Voltage (Lipo): 12S

No-Load Current: 0.8A/10V
Max Continuous Power: 2400W
Max Continuous Current: 50A/30s
Recommended ESC: 40A
Recommended Propeller: C30*10
Recommended Take-off Weight of Single Axis: ≤4500g

Features

  • 100KV brushless motor is high efficiency and stable, suitable for heavy lift drones.
  • It adopts an IP54 motor structure design to prevent dust and rain.
  • Lightweight brushless drone motor has a manual winding, the ultimate full slots rate, and a new optimized magnetic circuit to make the power stronger.

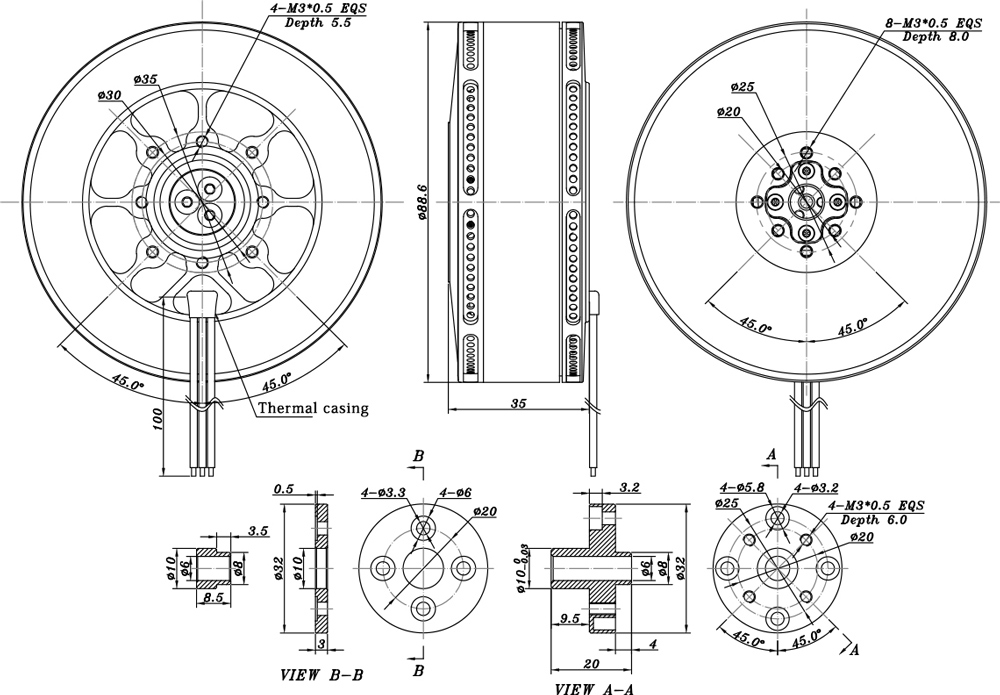

Dimensions (Unit: mm)

100KV Brushless Motor for Heavy Lifting Drone

Tips: What is KV in Brushless Drone Motors?

"KV" (not to be confused with “kV” the abbreviation for kilovolt) talks about the constant speed of the motor. The KV rating indicates the number of RPM a particular motor can produce when a given voltage is applied. Typically, the applied voltage is 1 volt of current. This voltage is usually applied without any load connected to the motor.

Write your own review
*
*
Reviews
High RPM capability
Its high RPM capability makes it well-suited for heavy lift applications, enabling drones to carry substantial payloads. The motor's capacity to deliver high thrust is a significant advantage for users with demanding aerial work needs.
Hawthorne | 10/30/2023 11:47 PM
Was this review helpful? Yes No (0/0)
