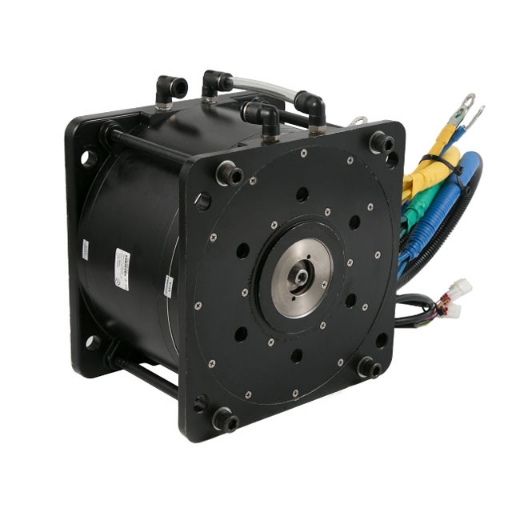

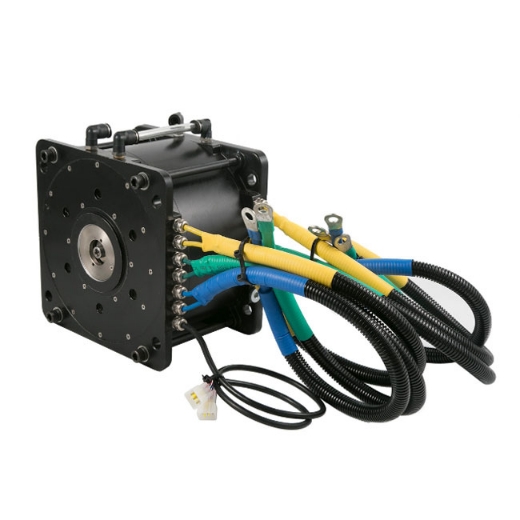

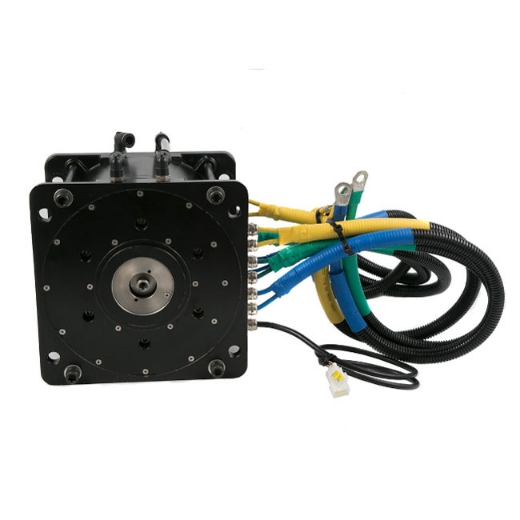

20kW BLDC Motor For Electric Vehicle, Water Cooling

Buy 20kW brushless DC motor for electric vehicles online, water-cooled BLDC motor with 72V or 96V voltage rating, 80 N.m torque rating, 160 Nm peak torque, and with a brushless controller to make the vehicle lighter while still getting more torque.

Basic Specifications

• Model: BLDC-HPM-20KW
• Voltage: 72V/96V
• Rated Power: 20 kW
• Peak Power: 50 kW
• Rated Current: 325A/245A/196A
• Max Phase Current: 1000A/700A/500A
• Protection Class: IP54
• Rotational Speed: 3200 rpm
• Rated Torque: 80Nm
• Peak Torque: 160Nm
• Efficiency: >90%
• Size: 30x30x25mm
• Weight: 45kg
• Cooling Method:  Water-cooled

Features

• 20kW brushless dc motor has a compact design, water resistant, stainless steel shaft, and self-cooling fan.
• Water-cooled brushless motors are easy to build and require no additional equipment.
• If you want to build an electric motorcycle with plenty of air to provide cooling air, the cooling system will be your best choice.

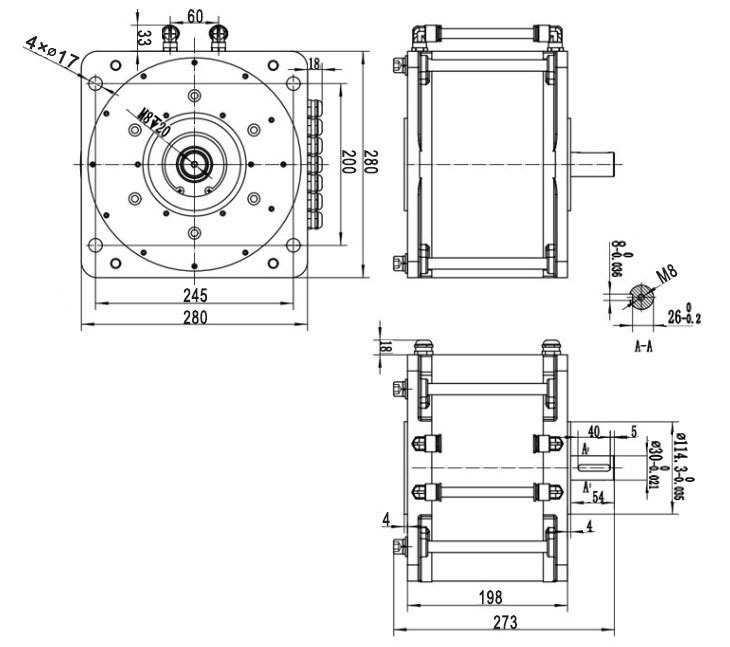

Dimension (mm)

Applications

Tips: Why use brushless motors for electric vehicles?

BLDC motors have traction characteristics such as high starting torque, high efficiency around 95-98%, etc. BLDC motors are suitable for a high power density design approach. BLDC motors are the motor of choice for electric vehicle applications because of their traction characteristics.
