10kW BLDC Motor For Electric Vehicle, Air Cooling 10kW BLDC Motor For Electric Vehicle, Air Cooling 10kW BLDC Motor For Electric Vehicle, Air Cooling

10kW BLDC Motor For Electric Vehicle, Air Cooling

$2,108.57
| 0 review(s) | Write your review
Cheap 10kW bldc motor for electric vehicle for sale. Small air-cooled brushless motor has optional rated voltage of 48V/ 72V/ 96V/ 120V, rated speed of 2000-6000 rpm, high efficiency of 91%. 72V brushless DC motor has advantages of small size, compact design, water resistant and long service life.
Free shipping
Delivery date: 7-14 days
SKU: BLDC-EVA-10000
*
increase decrease
Overview

Get a high-efficiency 10kW brushless DC motor for electric vehicles. 72V 10kW air-cooled brushless DC motor with rated speed 2000-6000 rpm (customizable), suitable for cars, motorcycles, golf carts, ATVs, UTVs and yachts.

Specification

Model: BLDC-HPM-10KW
Voltage: 48V/ 72V/ 96V/ 120V
Rated Power: 8kW-20kW
Rated Current: 245A/165A/125A/95A
Max Phase Current: 500A/500A/400A/300A

Protection Class: IP54
Efficiency: 91%
Phase Resistance (Milliohm): 3.1/48V; 6.0/72V; 18.0/120V
Phase Induction(100KHZ): 34uH/48V; 77uH/72V; 252uH/120V
Rated Speed: 3700 rpm (customizable)

Cooling Method: Air-cooled
Casing: Alu Smartum
Length (height): 170mm
Diameter: 206mm
Weight:17 kg

Features

  • 10kW brushless DC motor has a compact design, water resistant, stainless steel shaft and self-cooling fan.
  • An air-cooled brushless motor is easy to build and requires no additional equipment.
  • If you want to build an electric motorcycle with plenty of air to provide cooling air, the cooling system will be your best choice.

Dimension (mm)

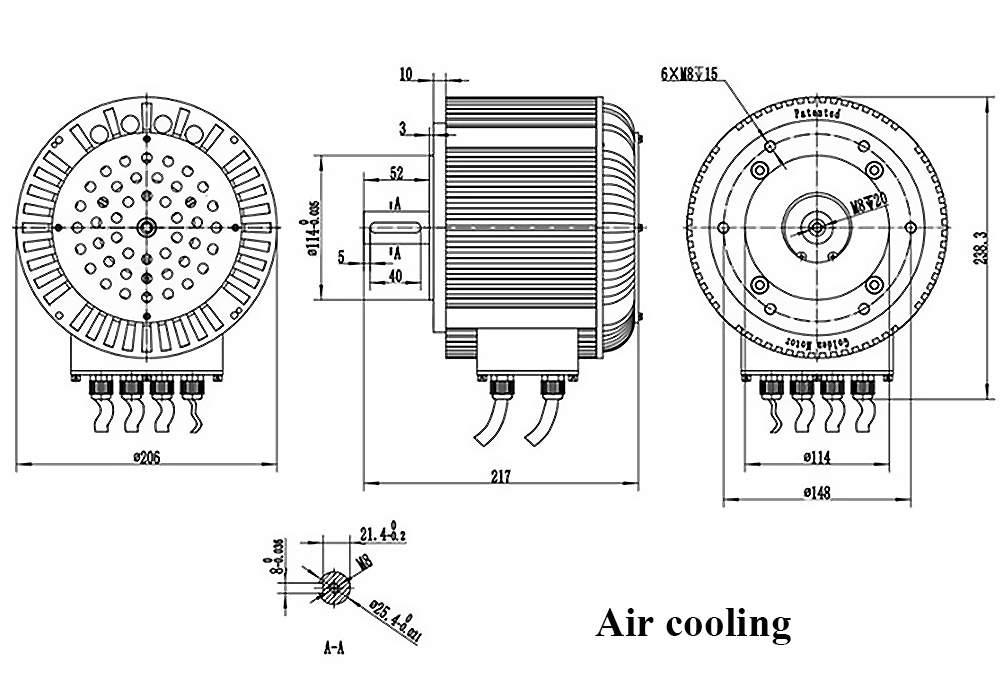

Dimension of 10kw air cooling bldc motor for vehicle

Applications

10kW brushless DC motors are suitable for cars, motorcycles, golf carts, ATVs, UTVs and yachts.

BLDC eletrical car motor applications

Tips: Which BLDC motor is used in electric vehicle?

Brushless direct current (BLDC) motor is one of the popular motors in the industry and automotive. In automotive, this motor is often used in an electric vehicle (EV) due to its high efficiency.
