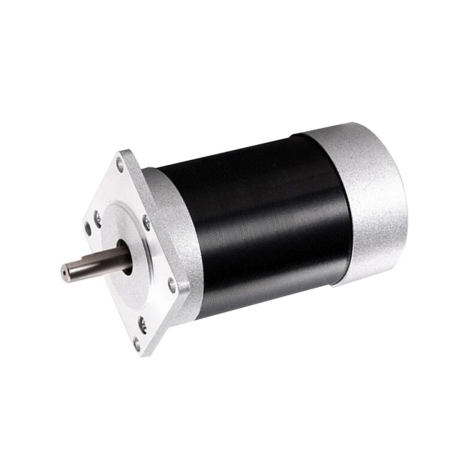

A brushless motor is a motor that does not use brushes for communication. Commutation is achieved through electronic control, thus avoiding the problem of brush wear. Brushless motors eliminate the mechanical contact between the brush and the commutator, reducing energy loss, and this loss can improve efficiency, usually up to 85% or more, much higher than brushed motors.
The brushless design minimizes component wear and increases the life of the motor to tens of thousands or even hundreds of thousands of hours, significantly extending the life of the motor and effectively reducing maintenance costs. It is also worth mentioning that there is no friction noise between the brush and the commutator, which is particularly suitable for occasions with high requirements for noise control. It is also more compact in design and can be used in more scenarios, so it is easier to choose a suitable brushless motor. With modern digital control technology, brushless motors can achieve precise control of motor speed and position, fast dynamic response speed, and are suitable for high-precision positioning and servo control applications.
Due to its advantages such as high efficiency, reliability, and easy maintenance, brushless motors have been widely used in many fields. However, in actual operation, the performance of brushless DC motors is affected by many factors. To ensure that the brushless motor can continuously and stably perform at its maximum efficiency, the inverter store will introduce you to the factors that can affect the working performance of the brushless motor.
Impact of Electromagnetic Design
Electromagnetic design is one of the core factors affecting the performance of brushless motors. Reasonable magnetic circuit design can reduce magnetic field loss and improve efficiency. Proper winding design, the use of high-quality wire materials, and an optimized winding layout can reduce resistance loss. Reasonable rotor design can reduce rotational inertia, increase dynamic response speed, and thus improve efficiency.
Bearing Type and Its Impact
Bearings can directly affect the performance and life of brushless motors. Common bearing types include rolling bearings and sliding bearings. Rolling bearings have the advantages of low friction and strong load capacity and are suitable for high-speed operation. Sliding bearings are more suitable for low-speed, high-load, or silent operation. Choosing the right bearing type can effectively reduce friction loss and improve motor efficiency.
Relationship Between Power Supply Voltage and Performance
The power supply voltage has a significant impact on the speed and torque characteristics of brushless motors. Voltage fluctuations can cause unstable motor output power and may also affect the service life of the motor. A low power supply voltage may cause the motor to fail to reach the rated speed or withstand the rated load. Conversely, too high a voltage may cause the motor to overheat or be damaged. Therefore, choosing the right power supply voltage is crucial to ensure the performance and service life of the motor.
Impact of The Cooling System
The cooling system also has a significant impact on the performance of the brushless motor. If the heat generated by the motor during operation is not dissipated in time, it will cause the internal temperature of the motor to rise, affecting the motor's performance. Natural convection cooling is suitable for low-power motors, while forced convection cooling and medium-power motors are more suitable. High-power motors are more suitable for liquid cooling or phase change material cooling. Optimized cooling mechanisms can improve motor efficiency and extend its service life.
Conclusion
The performance of brushless motors is affected by a variety of factors, including electromagnetic design, bearing type, power supply voltage, and cooling system. Reasonable selection and optimization of these factors for different application scenarios and performance requirements can greatly improve the overall performance and reliability of the motor. Future research and development will continue to focus on improving cooling efficiency and optimizing motor design to meet the growing performance requirements.
