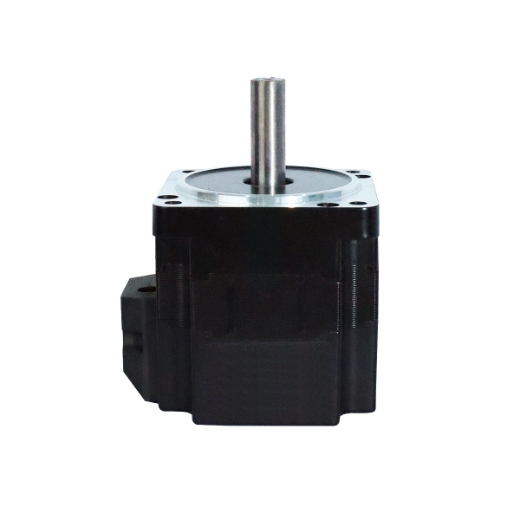

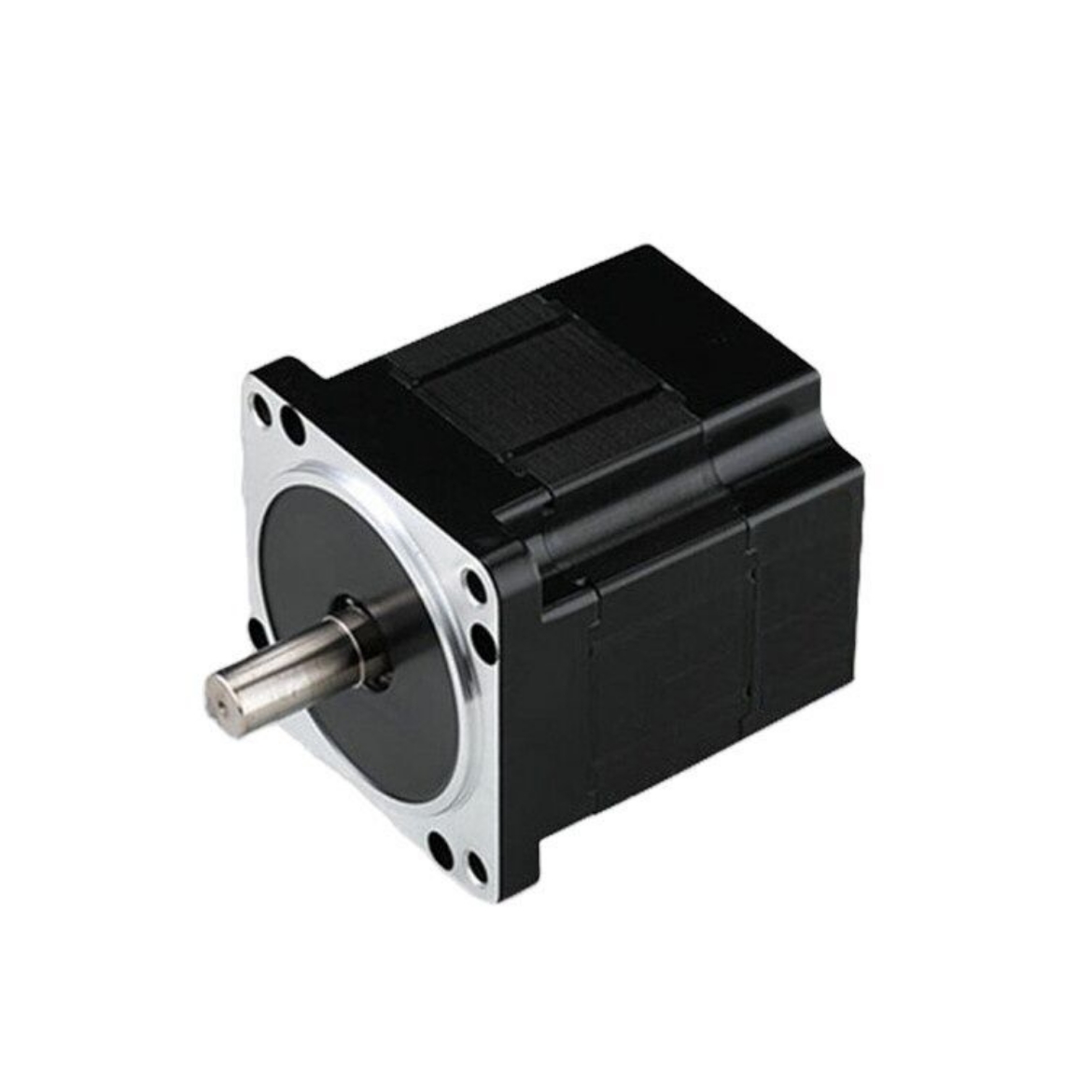

Custom Brushless DC Motors

$0.00

| 0 review(s) | Write your review

Are you looking for a customizable brushless motor? We offer high-performance brushless motors tailored to your specific needs From power, voltage, and speed to dimension drawing and 3D models, Brushless.com can provide customizable solutions to meet your unique requirements. Whether for industrial automation, robotics, electric vehicles, or other applications, our BLDC motors deliver efficiency, durability, and precision, making them a preferred choice in numerous applications and industries.

Rated Voltage *

Rated Power *

Frame Size

With Brake

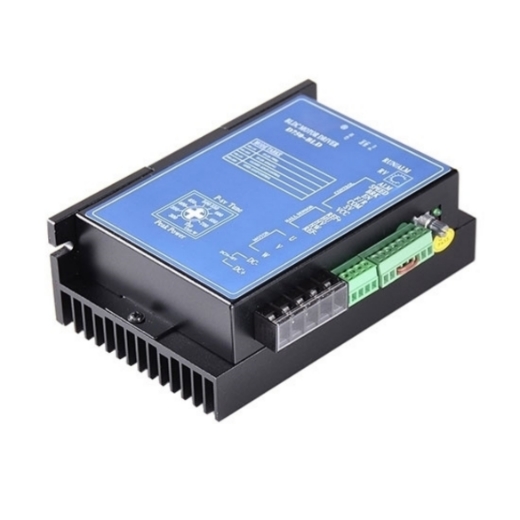

With Matched Controller

With Matched Gearbox

Inline Gearbox

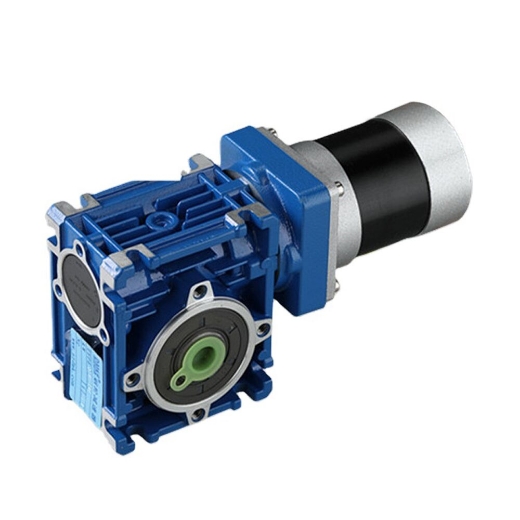

Right Angle Gearbox

Inline Gearbox Ratio

Right Angle Gearbox Ratio

Application & Other Requirements

increase decrease

Overview
Basic Specs
Documents
Custom Process
FAQs
Reviews

Overview

Customizing brushless DC (BLDC) motors is essential for optimizing performance, efficiency, and integration into specific applications. Standard motors may not meet unique requirements such as precise torque, speed, voltage, or size constraints. Moreover, customization enables seamless integration with existing systems, reducing the need for additional modifications and improving overall efficiency. Customized BLDC motors provide a competitive edge by ensuring optimal performance, extended lifespan, and reduced operational costs, making them a vital component in modern engineering solutions.

Basic Specs

Rated Voltage	Rated Power	Rated Torque	Rated Speed	Rated Voltage	Rated Power	Rated Torque	Rated Speed
12V BLDC Motor	50W	0.16 Nm	3000 rpm	48V BLDC Motor	100W	0.32 Nm	3000 rpm
	100W	0.32 Nm	3000 rpm		300W	1.12 Nm	3000 rpm
	150W	0.48 Nm	3000 rpm		500W	2.4 Nm	2000 rpm
	200W	0.64 Nm	3000 rpm		750W (1 hp)	2.39 Nm	3000 rpm
	250W	0.8 Nm	3000 rpm		1500W (2 hp)	4.78 Nm	3000 rpm
	300W	0.96 Nm	3000 rpm		2300W (3 hp)	7.3 Nm	3000 rpm
	350W	1.12 Nm	3000 rpm		3800W (5 hp)	12 Nm	3000 rpm
24V BLDC Motor	50W	0.16 Nm	3000 rpm	72V BLDC Motor	400W	2 Nm	2000 rpm
	200W	0.64 Nm	3000 rpm		600W	6 Nm	2000 rpm
	300W	0.96 Nm	3000 rpm		1000W	10 Nm	1000 rpm
	750W (1 hp)	2.39 Nm	3000 rpm		2000W	10 Nm	2000 rpm
	1300W	4 Nm	3000 rpm		2300W (3 hp)	7.3 Nm	3000 rpm
	1900W (2.5 hp)	6 Nm	3000 rpm		5000W	16 Nm	3000 rpm
36V BLDC Motor	100W	0.32 Nm	3000 rpm	96V BLDC Motor	500W	2 Nm	2000 rpm
	300W	0.96 Nm	3300 rpm		1000W	10 Nm	1000 rpm
	600W	1.91 Nm	3000 rpm		1900W (2.5 hp)	6 Nm	3000 rpm
	750W (1 hp)	2.39 Nm	3000 rpm		2300W (3 hp)	7.3 Nm	3000 rpm
	1000W	3.18 Nm	3000 rpm		3800W (5 hp)	12 Nm	3000 rpm
	1500W	4.78 Nm	3000 rpm		5000W	16 Nm	3000 rpm

Note: 3000 rpm for standard (or 2000 rpm when matching the worm gearbox)

Documents

Download Brushless BLDC Motors Catalogs

Download Brushless KBL Series BLDC Motor Controller User Manual

Custom Process

We provide customized brushless motor solutions tailored to your specific application needs. Enjoy a streamlined process, enhanced communication, and rigorous quality control measures that guarantee the delivery of BLDC motors that meet the standards. Whether you need a motor for drones, robotics, or industrial applications, we can help you achieve the perfect solution.

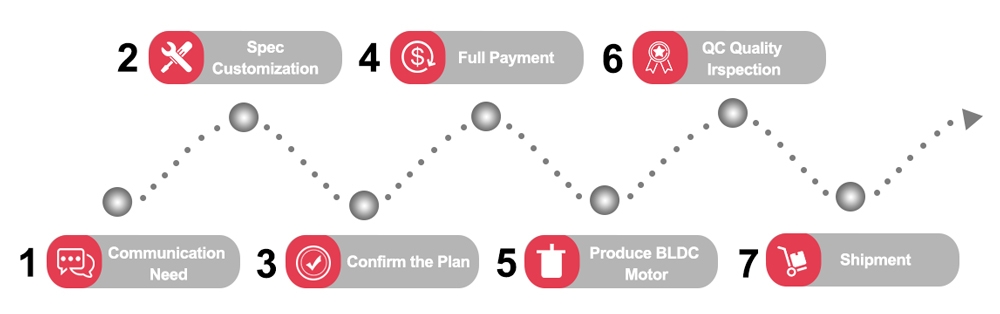

BLDC motor customization process

FAQs

Q1: Can brushless motors be customized for specific applications?
A1: Yes, brushless motors can be fully customized to meet the requirements of various applications, including robotics, electric vehicles, drones, industrial equipment, and more. Customizations can include adjustments to size, voltage, speed, torque, and other performance parameters.

Q2: What BLDC motor specifications can be customized?
A2: Brushless motors can be customized in terms of power, voltage, braking system, output torque, speed, gearbox integration, frame size, shaft length, and shaft diameter to meet specific application needs. If you require other customizations or have unique specifications in mind, please feel free to contact us for further assistance and detailed options.

Q3: What is the minimum order quantity (MOQ) for customizing a brushless motor?
A3: The minimum order quantity for custom brushless motors is just one unit (MOQ: 1). Whether you need a single prototype or a batch production, we are ready to accommodate your specific requirements.

Q4: What is the warranty period for the customized motor?
A4: Our customized motors come with a 12-month warranty, ensuring that you receive reliable performance and peace of mind. If any issues arise within this period, we are committed to providing support and resolving any concerns.

Q5: What type of support is available after receiving a customized motor?
A5: We provide comprehensive after-sales support, including installation guidance, troubleshooting, and technical assistance. Our team is available to ensure your customized motor operates at peak performance and to assist with brushless motor-related queries you may encounter.
