Selling low price small brushless motor, speed in 880KV, lipo 3~4S, anti-pressure damping bearing, effectively eliminate vibration. Perfect for you to equip your model with it, ideal for fixed wing, UAV and helicopter.
Basic Specifications
| Model |
BLDC-X2216-880 |
BLDC-X2216-950 |
BLDC-X2216-1100 |
BLDC-X2216-1250 |
| Motor KV |
880KV |
950KV |
1100KV |
1250KV |
| Stator Diameter |
26 |
| Stator Thickness |
12 |
| Number of Slots |
12N14P |
| Interphase Internal Resistance |
53mΩ |
25.8mΩ |
18.5mΩ |
13.1mΩ |
| Motor Size |
φ27.7*50.0mm (Long axis), φ27.7*36.5mm (Short axis) |
| Shaft Diameter |
3.175mm |
| Motor Silicone Wire Specifications |
20AWG 110mm |
| Motor Weight |
67.5g |
67g |
69g |
69g |
| Operating Rated Voltage (Lipo) |
3-4S |
| No-Load Current |
0.5A/10V |
0.7A/10V |
0.8A/10V |
1A/10V |
| Maximum Continuous Power |
450W |
450W |
480W |
600W |
| Maximum Continuous Current |
32A/30s |
32A/30s |
34A/30s |
34A/30s |
| ESC Recommended |
50A |
50A |
30-40A |
40A |
| Recommended Propeller Specifications |
APC9047/9045 |
APC 9047/APC |
APC9047/APC9045 |
APC9047/APC9045 |
Features

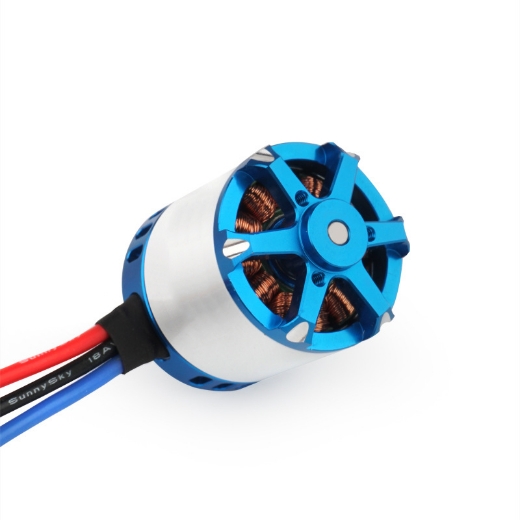

- 880KV/950KV/1100KV/1250KV Brushless motor cool magic blue rotor end cap with six contours, strong and sturdy. High-quality white metallic paint with blue end caps for a more chic layered aesthetic. The stator end caps are hollowed out around the perimeter, which also increases the heat dissipation area for better heat dissipation.
- Each drone's brushless motor is made by strict dynamic balancing. Original NSK bearings for lower noise and smoother operation. High precision CNC machined parts, fine assembly process to achieve higher runout and concentricity standards.
- Circular magnet 0.2MM air gap, lower iron loss 0.2MM core, full hand winding, super high slot fill rate.

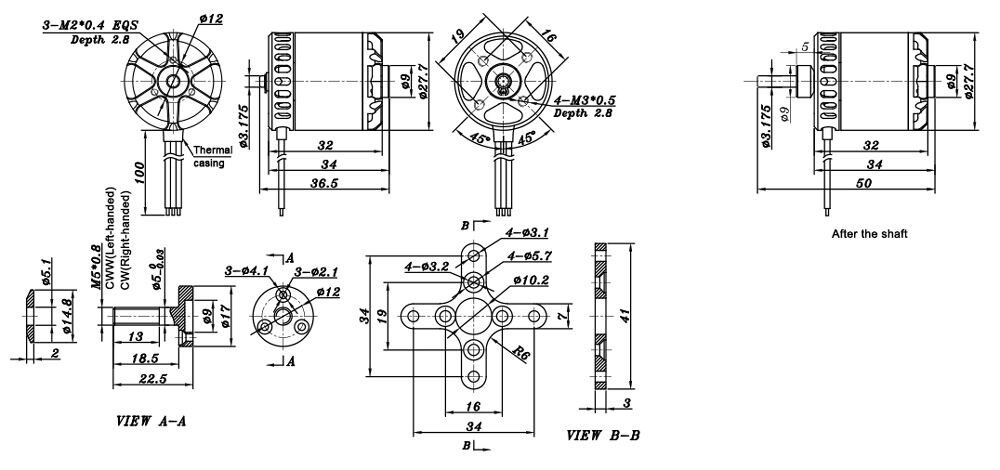

Dimensions (Unit: mm)
Tips: What kind of motors are used in drones?
Generally, brushed motors are used for the smallest drones, while larger drones and UAVs will use brushless motors because they can carry the extra weight of additional electronics. Brushless drone motors also require an electronic speed controller (ESC) to operate.
