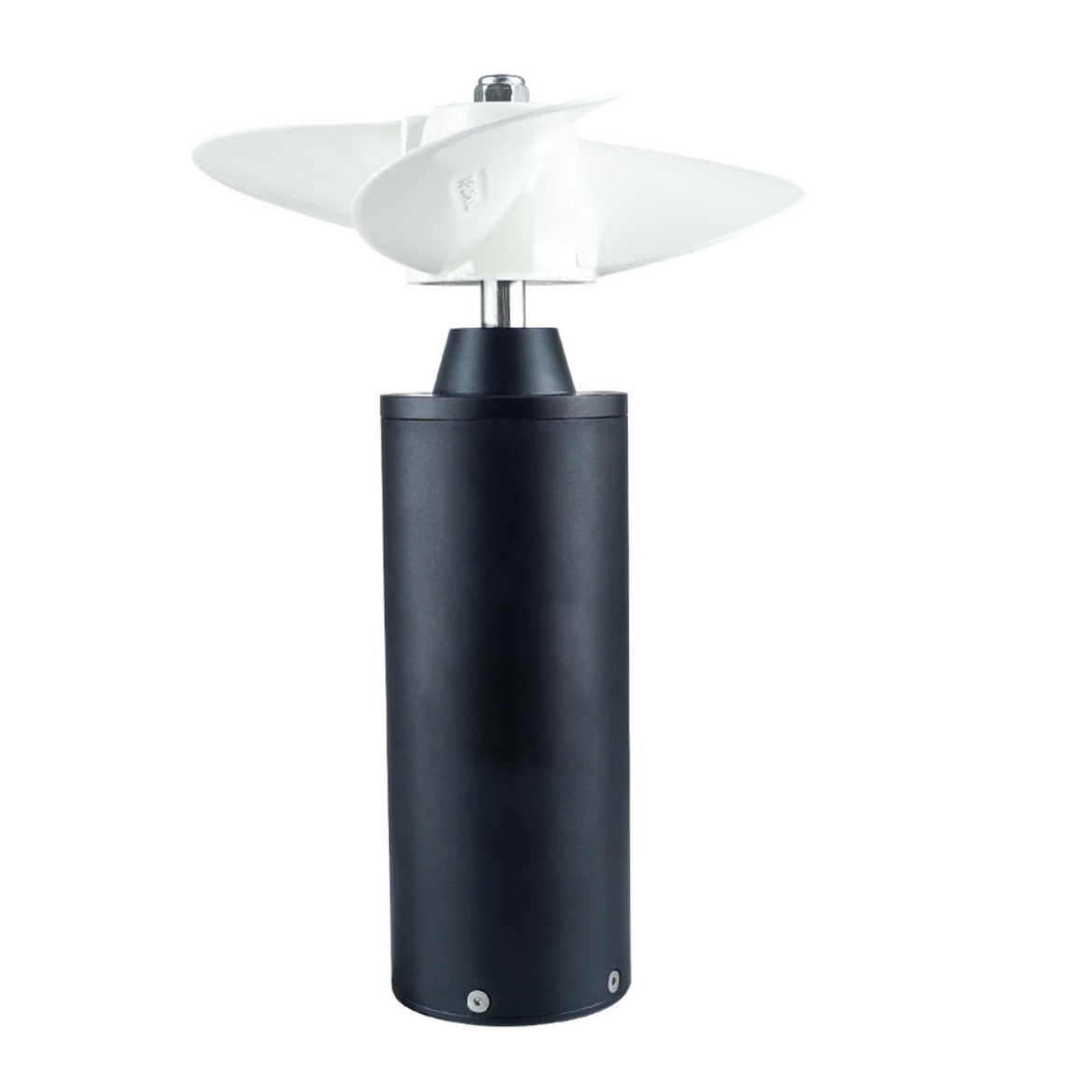

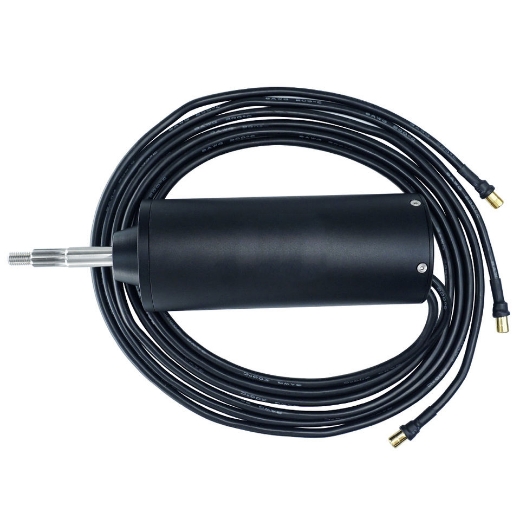

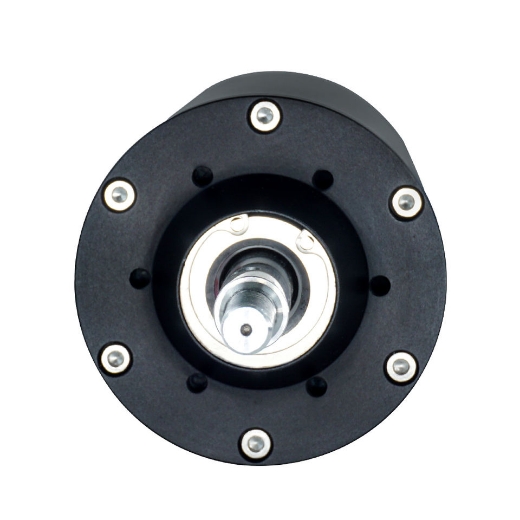

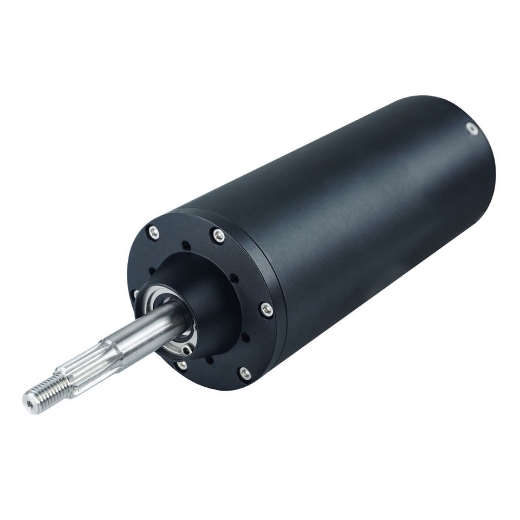

IP68 inrunner BLDC motor is a sensorless underwater small motor, which paired with controller for sale, matching ESC driver is provided for selection. Max power 6kW, power supply batteries 6-20S, motor dimension 65*161 mm. Competitive price BLDC motor combine with ESC controller suitable for direct-drive propeller/ Efoil electric surfboard, skateboard, longboard applications.
Specification
Model: BLDC-65161
Max Power: 6000W
Rotation Speed KV (RPM/V): 120KV
Max Input Voltage: DC 25-84V
Max. Spin Speed: 16380 rpm
Peak Current: 200A
Motor Pole: 6
Max Torque at 60%: 9 Nm
Motor Dimension: 65*161mm
Max Working Temperature: 120℃
Insulation Voltage & Leak Current: AC500V/10mA/3S
Lead Wires Extension: 8AWG x 1300mm
Waterproof Grade: IP68
Motor Wire: 8 AWG
Plug: 8mm
Weight: 3kg
Note: The motor is powered by 6-20S batteries, S is the number of batteries, voltage of every battery is 3.7V DC.

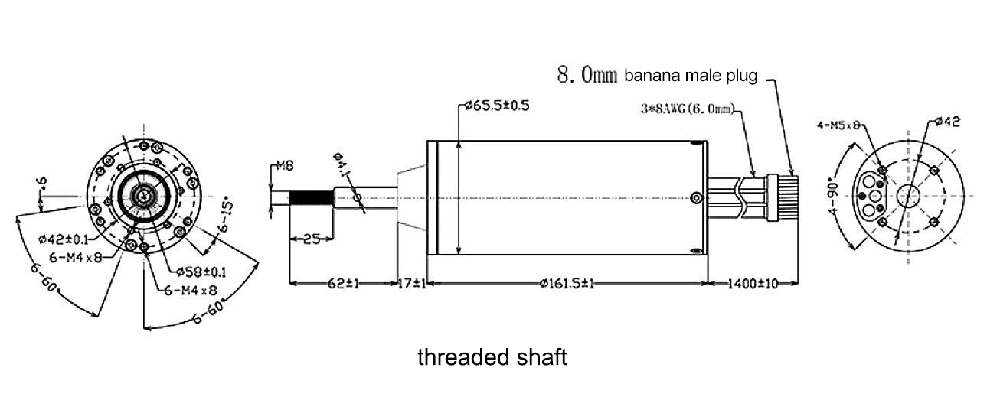

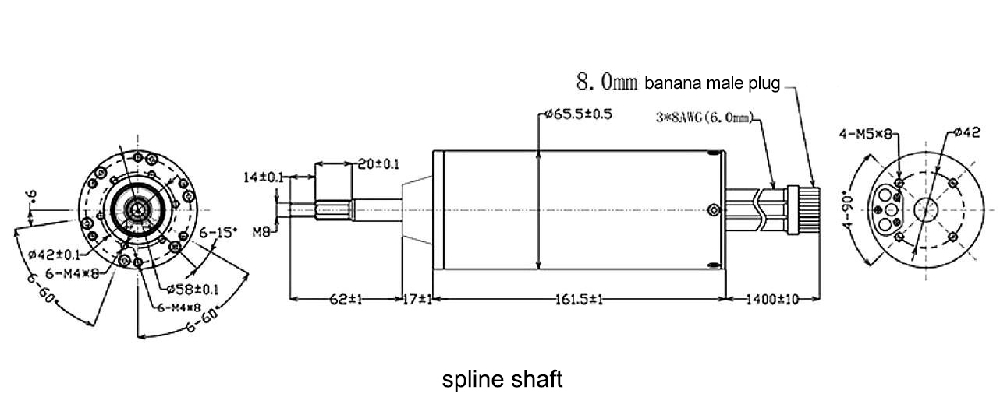

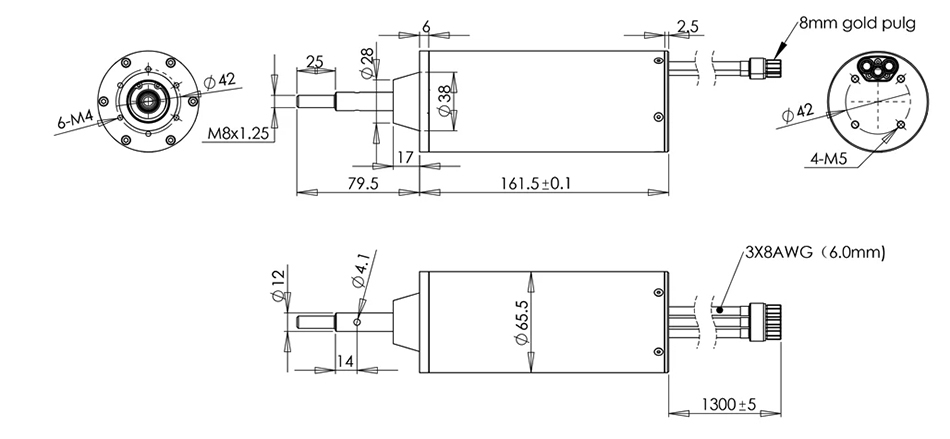

Dimensions (mm)
ESC (Electronic Speed Controller) Selection for Waterproof BLDC Motor
- The speed of the BLDC motor does not exceed the speed of ESC, it can be matched and used.
- Brushless DC motor speed calculation formula: battery voltage * motor KV value.
Brushless DC motor stator speed calculation formula: motor KV value * battery voltage * motor pole pairs.
- The limit speed of V4 series ESC is 60000 ERPM.
The limit speed of V6 series ESC is 15000 OERPM.
- If the maximum speed of BLDC motor exceeds the speed of the electric speed controller, the ESC can also be matched by reducing the working voltage of motor. But we do not recommend this, because it does not really play the role of a brushless DC motor.

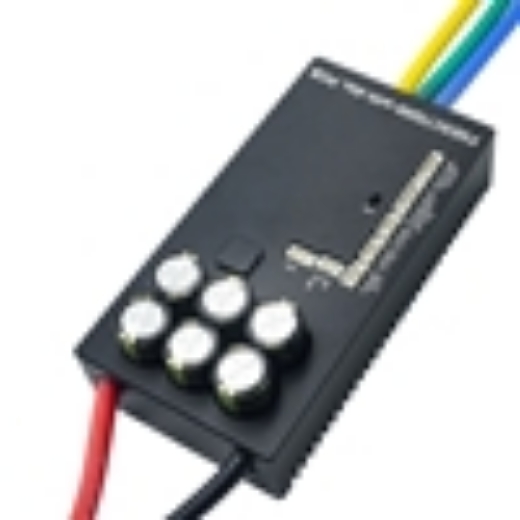

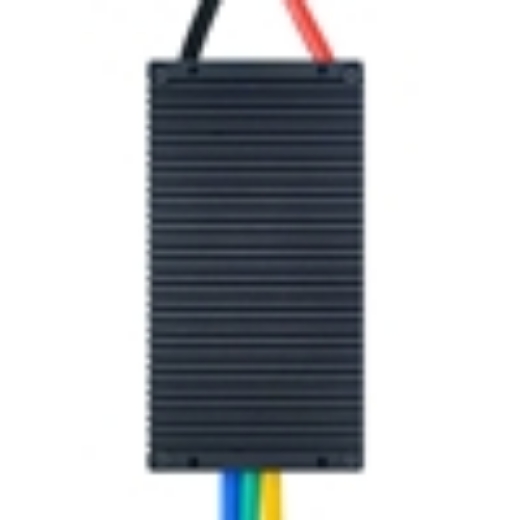

ESC (Electronic Speed Controller) Specification
| Model |
Current Value |
Number of Batteries (Input Voltage) |
| FSESC 4.12 |
Continuous 50A, peak 240A |
3S-12S (8V-60V) |
| FSESC 4.20 |
Continuous 50A, peak 240A |
3S-12S (8V-60V) |
| VESC6.6 integrated switch dual drive version |
1-channel 100A continuous, 2-channel 200A continuous
1-channel peak 400A, 2-channel total peak 800A |
3S-12S (8V-60V) |
| VESC6.6 integrated switch dual drive version |
1-channel 100A continuous, 2-channel 200A continuous
1-channel peak 400A, 2-channel total peak 800A |
3S-12S (8V-60V) |
| FSESC6.7 VESC6.6 single drive integrated |
Continuous 70A, peak 200A |
3S-12S (8V-60V) |
| VESC4 dual drive integration |
50A continuous 1-channel, peak 100A 2-channel, peak 300A 2-channel |
3S-12S (8V-60V) |
| ODESC3.6 single drive/dual drive |
50A continuous 1-channel, peak 120A 1-channel |
3S-12S (8V-60V) |
| VESC6 dual drive |
1-channel 100A continuous, 2-channel 200A continuous
1-channel peak 400A, 2-channel total peak 800A |
3S-12S (8V-60V) |
| Single drive V6 75200 * |
Continuous 200A |
3S-12S (8V-60V) |
| Single drive VESC6 waterproof version |
Continuous 60A, peak 150A |
3S-12S (8V-60V) |
Note: The ESC model with * is the recommended controller for this page of motor, if you need other ESC models, please contact us.
Tips: How to test the airtightness and waterproofness of the outrunner bldc motor's housing?
The key to the air-tightness and waterproof detection of the motor shell is the auxiliary fixture. Due to the particularity of the motor shell, it is necessary to customize the corresponding mold for the air-tightness and waterproof detection of the motor shell. Put the product into the mold, and the upper mold is down Press and fix the product and set up a test port to test by inflation. The test pressure is 250KPA, the inflation time is 10 seconds, the voltage stabilization time is 10 seconds, the test time is 5 seconds, and the leakage value is 0.05KPa. The OK/NG products can be quickly detected by using the sensor in the motor housing air tightness detection device, and the motor housing air tightness and waterproof detection equipment use compressed air, which can realize fast motor housing air tightness and waterproof detection.
