Get a 160KV sensorless BLDC motor with good price, IP68 waterproof, max power 500W, input voltage 12S (DC 44V). Waterproof BLDC motor is widely used in electric surfboards, surf motorcycles, submersible propellers, drones, etc.
Specification
Model: BLDC-5062
Max Power: 500W
Rotation Speed kV (RPM/V): 160KV
Max Input Voltage: DC 44V
Rated Voltage: 24V
No-load Current:＜1A
Maximum Load Current: 30A
Motor Dimension: 50*62 mm
Hole Distance: φ 35 mm
Screw Holes: 4*M4
Waterproof Grade: IP68
Motor Wire: 12AWG
Note: The motor is powered by 12S batteries, S is the number of batteries, voltage of every battery is 3.7V DC.

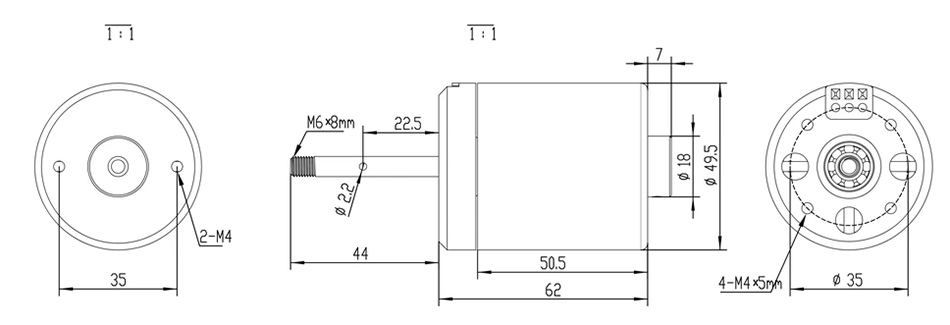

Dimensions (mm)
ESC (Electronic Speed Controller) Selection for Waterproof BLDC Motor
- The speed of the BLDC motor does not exceed the speed of ESC, it can be matched and used.
- Brushless DC motor speed calculation formula: battery voltage * motor KV value.
Brushless DC motor stator speed calculation formula: motor KV value * battery voltage * motor pole pairs.
- The limit speed of V4 series ESC is 60000 ERPM.
The limit speed of V6 series ESC is 15000 OERPM.
- If the maximum speed of BLDC motor exceeds the speed of the electric speed controller, the ESC can also be matched by reducing the working voltage of motor. But we do not recommend this, because it does not really play the role of a brushless DC motor.
ESC (Electronic Speed Controller) Specification
| Model |
Current Value |
Number of Batteries (Input Voltage) |
| FSESC 4.12 |
Continuous 50A, peak 240A |
3S-12S (8V-60V) |
| FSESC 4.20 |
Continuous 50A, peak 240A |
3S-12S (8V-60V) |
| VESC6.6 integrated switch dual drive version |
1-channel 100A continuous, 2-channel 200A continuous
1-channel peak 400A, 2-channel total peak 800A |
3S-12S (8V-60V) |
| VESC6.6 integrated switch dual drive version |
1-channel 100A continuous, 2-channel 200A continuous
1-channel peak 400A, 2-channel total peak 800A |
3S-12S (8V-60V) |
| FSESC6.7 VESC6.6 single drive integrated |
Continuous 70A, peak 200A |
3S-12S (8V-60V) |
| VESC4 dual drive integration |
50A continuous 1-channel, peak 100A 2-channel, peak 300A 2-channel |
3S-12S (8V-60V) |
| ODESC3.6 single drive/dual drive |
50A continuous 1-channel, peak 120A 1-channel |
3S-12S (8V-60V) |
| VESC6 dual drive |
1-channel 100A continuous, 2-channel 200A continuous
1-channel peak 400A, 2-channel total peak 800A |
3S-12S (8V-60V) |
| Single drive V6 75200 |
Continuous 200A |
3S-12S (8V-60V) |
| Single drive VESC6 waterproof version * |
Continuous 60A, peak 150A |
3S-12S (8V-60V) |
Note: The ESC model with * is the recommended controller for this page of motor, if you need other ESC models, please contact us.

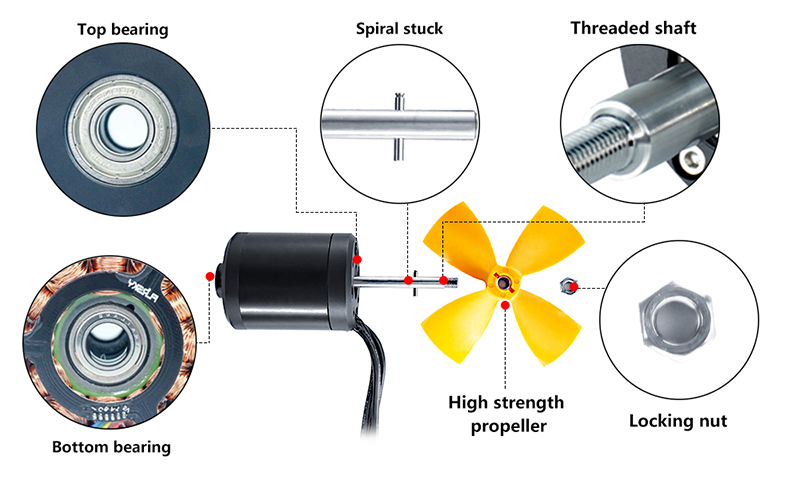

Details
Tips: What is the difference between outrunner and inrunner motors?
An advantage of a 500-watt outrunner motor compared to an inrunner motor, is that the air gap surface is substantially larger. In other words, the surface area through which the electromagnetic field lines pass from rotor to stator is much larger.
