BLDC motors designed for fixed-wing drones, 200KV speed, propeller size optional, high reliability, high-speed dynamic balancing of each rotor to ensure high-speed operation of the motor without jitter, suitable for fixed-wing, RC aircraft, helicopters, drones.
Basic Specifications
| Model |
BLDC-X5230-200 |
| Motor KV |
200KV |
| Shaft diameter |
8mm |
| Interphase Internal Resistance |
24.3mΩ |
| Motor Size |
Motor length 60mm |
| Motor Silicone Wire Specifications |
Lead wire |
| Motor Weight |
615g |
| Number of Slots |
24N28P |
| No-Load Current |
53.428A |
| Maximum Continuous Power |
3900W |
| Maximum Continuous Current |
97A/30s |
| Operating Rated Voltage (Lipo) |
36.99V/10S |
| ESC Recommended |
120A |
| Recommended Propeller Specifications |
20*8 / 20*10 / 20*12 20*8 / 20*10 / 20*12 |
Features

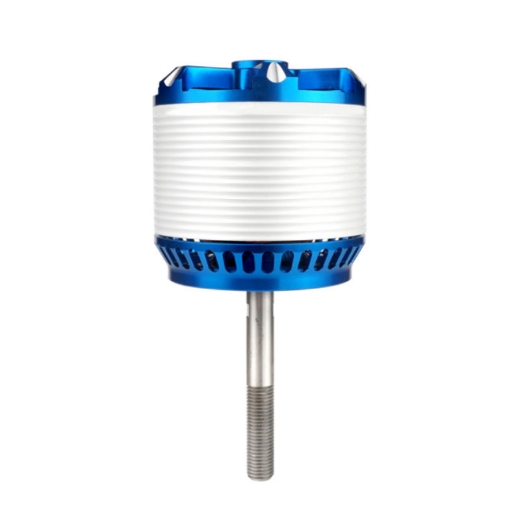

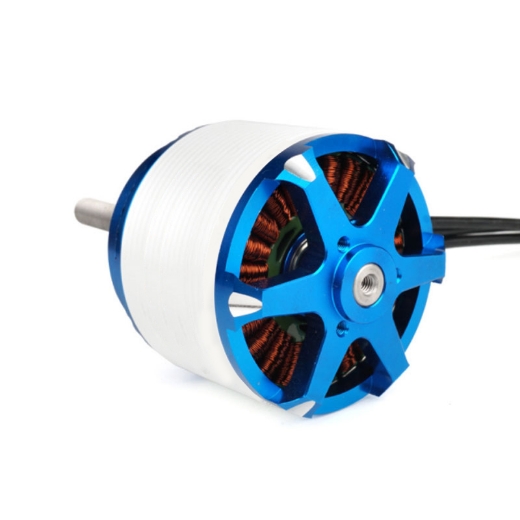

- 200KV Brushless motor cool magic blue rotor end cap with six contours, strong and sturdy. High-quality white metallic paint with blue end caps for a more chic layered aesthetic. The stator end caps are hollowed out around the perimeter, which also increases the heat dissipation area for better heat dissipation.
- Each drone's brushless motor is made by strict dynamic balancing. Original NSK bearings for lower noise and smoother operation. High precision CNC machined parts, and fine assembly process to achieve higher runout and concentricity standards.
- Circular magnet 0.2MM air gap, lower iron loss 0.2MM core, full hand winding, super high slot fill rate.
Dimensions (Unit: mm)
Tips: How to determine the size of the drone motor?
Find out the size of the components to be used in this order: frame size => column size => motor size
By knowing the frame size, we can estimate the motor size we should use. The frame size limits the prop size, and each prop size requires a different motor speed to effectively produce thrust, which is where the motor KV comes into play.
It is important to make sure that the motor produces enough torque to spin the propeller of your choice, and this is where your stator size comes into play. Usually a larger stator size and higher KV means more current draw.
