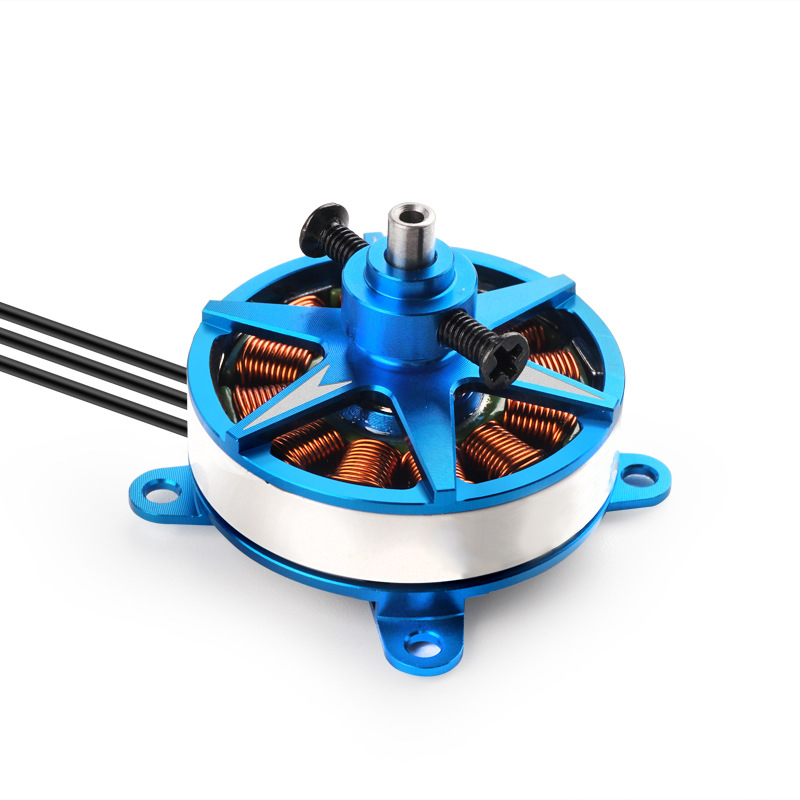

High torque brushless motor designed for fixed-wing drones, speed 1500KV or 1650KV, small brushless motor with 12N14P high torque in design, strong thrust, more powerful than other ordinary brushless motors, high efficiency, recommended 10A ESC.
Basic Specifications
| Model |
BLDC-X2302-1500 |
BLDC-X2302-1650 |
| Motor KV |
1500KV |
1650KV |
| Shaft diameter |
3mm |
| Interphase Internal Resistance |
357mΩ |
316mΩ |
| Motor Size |
φ28.0*20.5mm |
| Motor Silicone Wire Specifications |
20AWG 50mm |
| Motor Weight |
15.7g |
15.5g |
| Number of Slots |
12N14P |
| No-Load Current |
49.993A |
1.8A |
| Maximum Continuous Power |
540W |
45600W |
| Maximum Continuous Current |
9.5A/30s |
10A/30s |
| Operating Rated Voltage (Lipo) |
2-3S |
| ESC Recommended |
10A |

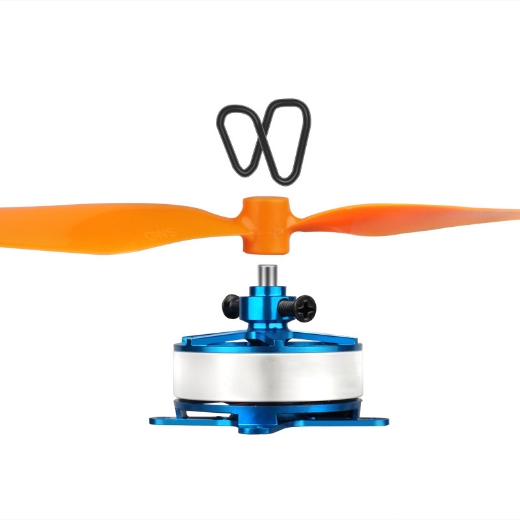

| Recommended Propeller Specifications |
GWS8043/GWS8060 |
GWS8043/GWS8060 |
Features

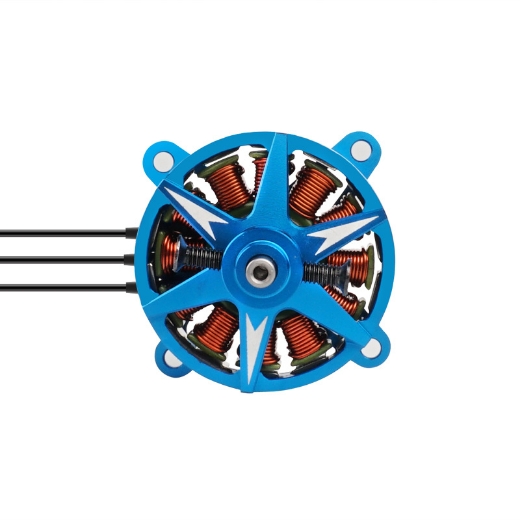

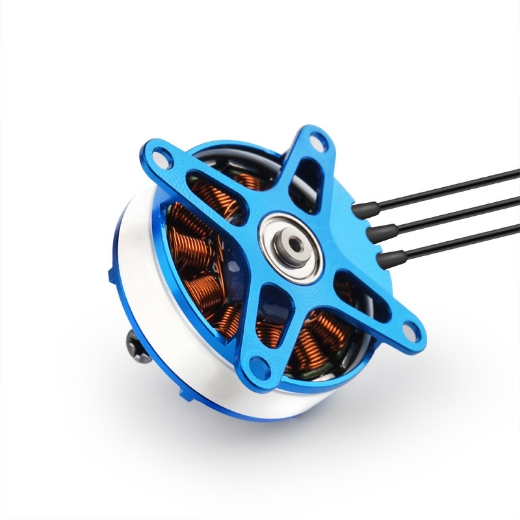

- 1500KV/1650KV Brushless motor cool magic blue rotor end cap with six contours, strong and sturdy. High-quality white metallic paint with blue end caps for a more chic layered aesthetic. The stator end caps are hollowed out around the perimeter, which also increases the heat dissipation area for better heat dissipation.
- Each drone's brushless motor is made by strict dynamic balancing. Original NSK bearings for lower noise and smoother operation. High precision CNC machined parts, fine assembly process to achieve higher runout and concentricity standards.
- Circular magnet 0.2MM air gap, lower iron loss 0.2MM core, full hand winding, super high slot fill rate.

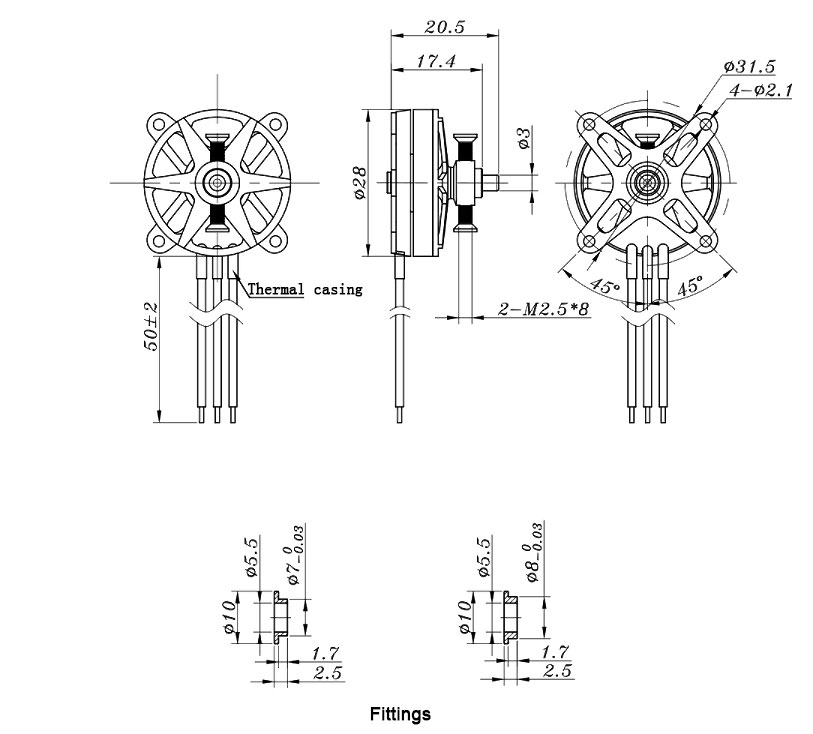

Dimensions (Unit: mm)
Details
Tips: How to maintain a fixed-wing drone motor?
The performance of a fixed-wing drone depends heavily on the motor. If the motor is in good condition, you can be sure to get the best out of your drone. This is why you should take good care of the motor.
The best way to do this is to always keep the motor clean. Use canned air, or a soft bristle brush to clean the motor. If needed, use a slightly damp cloth to remove dirt. Once you clean them, make sure they are wiped dry, as water is not good for the motor.
You should also make sure that the fixed-wing drone motors do not overheat. Even if you have a spare battery, give the drone time to cool down between flights. Just a 10-minute break is enough to give the motors time to cool down and avoid overheating.
