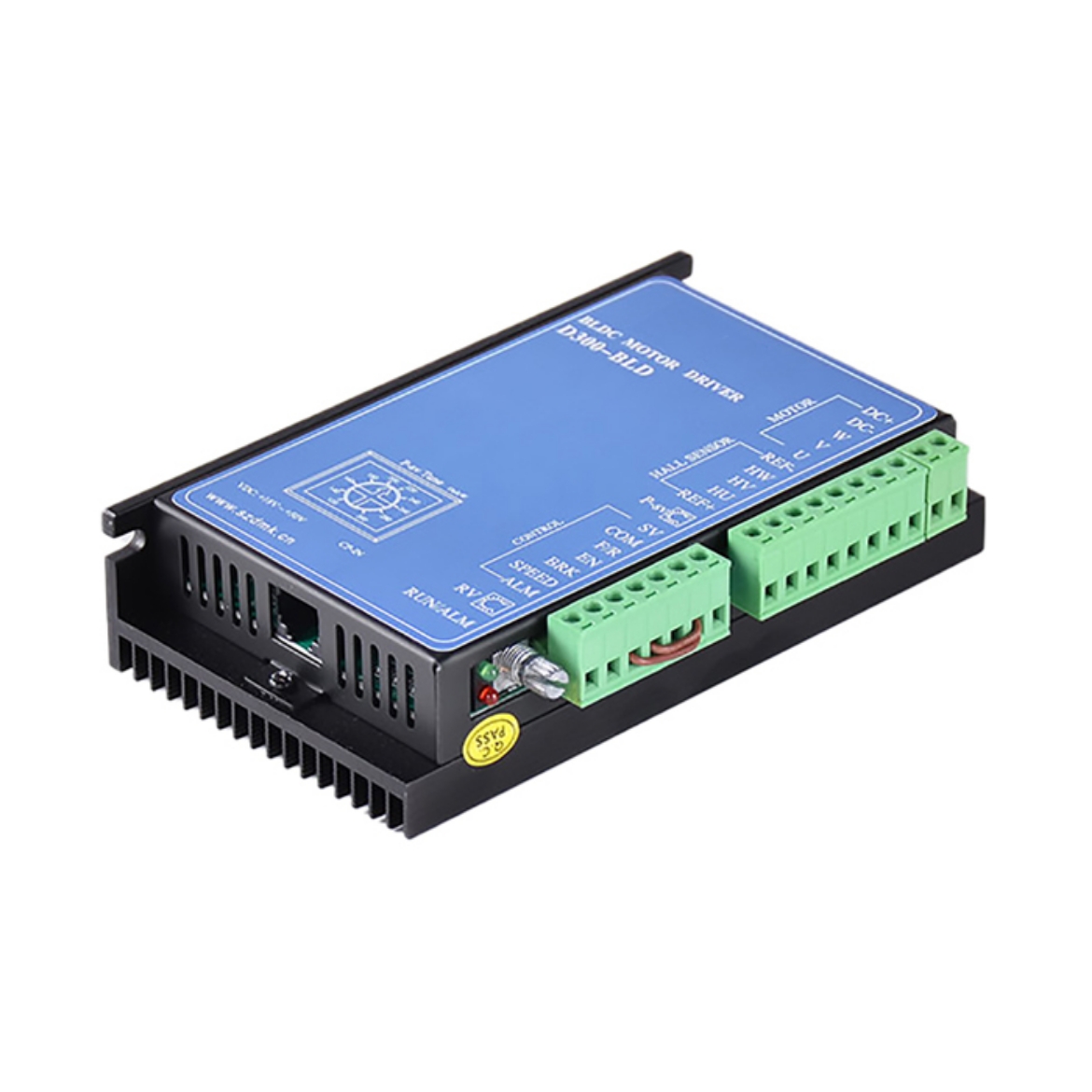

12V-56V Brushless Controller for 12/24/36/48V BLDC Motor

Buy the controller for the brushless motor, power supply 12V-56V DC, speed control up to 20000rpm, output current 15A, the brushless motor controller is compact, easy to operate, low failure rate.

Specification

• Model: BLDC-BLD300
• Power Supply: 12V ~ 56V DC
• Typical Power: 48V DC
• Output Current: 15A
• Over Voltage Protection: 5V
• Under Voltage Protection: 12mA
• External Potentiometer: 10KΩ
• Input Analog Voltage: 5 VDC
• Speed Control Range: 20000rpm

Dimensions (Unit: mm)

Tips: Why can't any brushless DC motor controller and motor be connected arbitrarily to ensure proper rotation and the brushless DC motor will cause phase sequence reversal?

Generally speaking, a brushless DC motor will go through the following process during the actual motion. Motor rotation → rotor magnetic field direction change → stator magnetic field and rotor magnetic field angle reach 60° electrical angle → Hall signal change → phase line current direction change → stator magnetic field forward across 60° electrical angle → stator magnetic field and rotor magnetic field angle reach 120° electrical angle → motor continuous rotation.
In this way, we know that Hall sensors have six correct states. When a Hall sensor informs the controller, the controller will be in a specific phase sequence output state. Therefore, the phase sequence is reversed in order to accomplish the following task - to move the electrical angle of the stator by 60°.
