1200KV Brushless Motor For RC Boat

Powerful 1200KV brushless water-cooled motor with the automatic water-cooling system, 4-stage 12-slot high-torque motor design, CNC machined billet, 6061-T6 aluminum heat sink, RC boat brushless motor's excellent torque ensures long operation.

Specifications

• Model: BLDC-RB-3670
• Rotational Speed: 1200KV
• Maximum Current: 45A
• Maximum Voltage: 36V
• Maximum Power: 1600W
• Length: 70mm
• Diameter: 36mm
• Winding Method: WYE
• Number of Turns: 4Y
• No-load Current: 1.2A
• Max Seed: 60000KV
• Shaft: 5mm
• Number of Rotor Stages: 4
• Weight: 275g

Features

• 4-stage 12-slot high-torque motor design
• CNC machined billet, 6061-T6 aluminum heat sink
• High purity copper coil for maximum performance
• High-speed ABEC5 oversized bearings
• Highly balanced rotor, high smoothness, accuracy and high speed
• Ultra-thin (0.2mm) stator blades
• Removable/replaceable rotor
• Precision design for maximum energy conversion

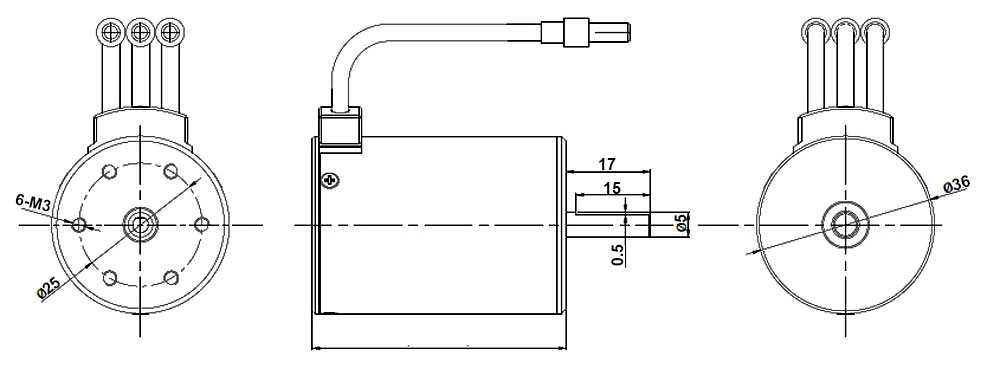

Dimension

Details

Tips: What is the 540 size remote control motor?

The numbers refer to the diameter of the motor. 540 has a diameter of 36 mm. 380 has a diameter of about 28 mm. 280 has a diameter of 24 mm. The S, L, or XL after the number refers to the length of the motor.
